Run Causal Audit

What you will complete

You will select one completed execution with auditable tool evidence, create an intervention policy, verify that the audit is allowed, submit it, and inspect the immutable result. The example uses the bundled local fraud scenario.

Observed tool evidence → approved policy → eligibility check → isolated replay → reviewable result

Before you start

Start the local stack, sign in to Studio, and load the local Agents Runtime demo data if your environment has no observed executions yet. You need a role that can create and read Causal Audits. Keep the API values from the previous tutorial available.

./servers.sh

1. Choose eligible evidence

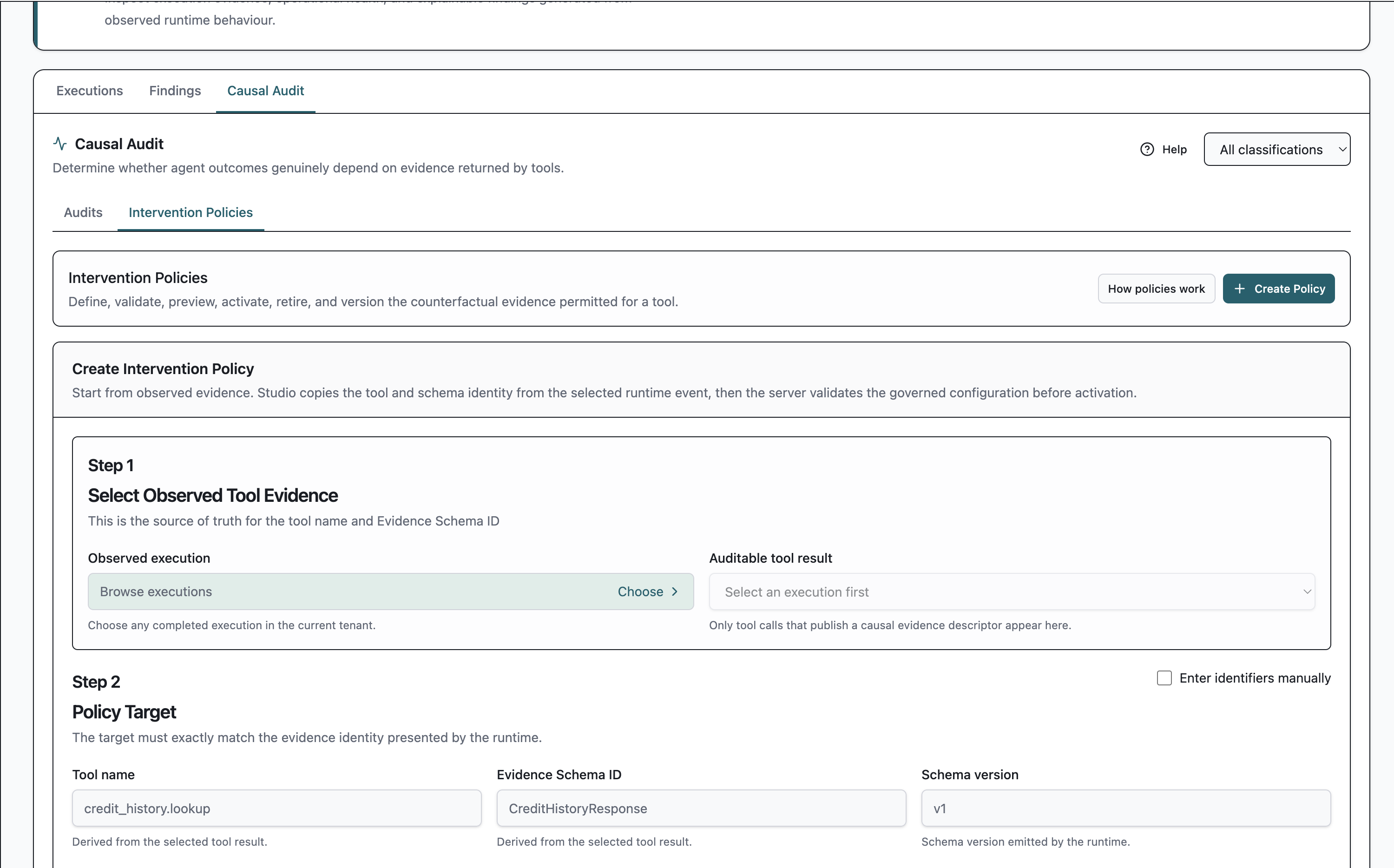

1. Open Agents Runtime → Causal Audits → Intervention Policies.



2. Select Create Policy.

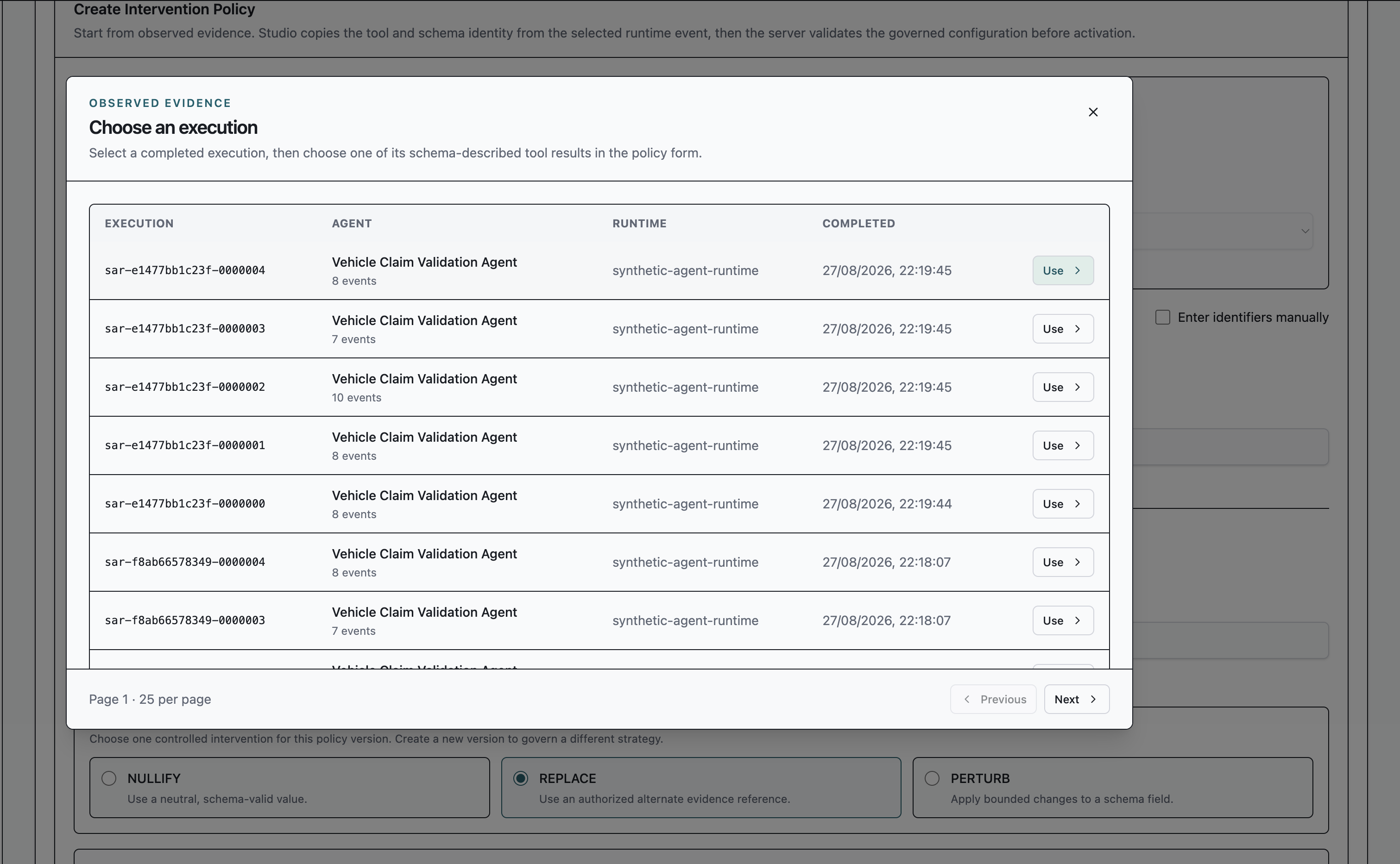

3. Choose a completed execution from the current organization and project.

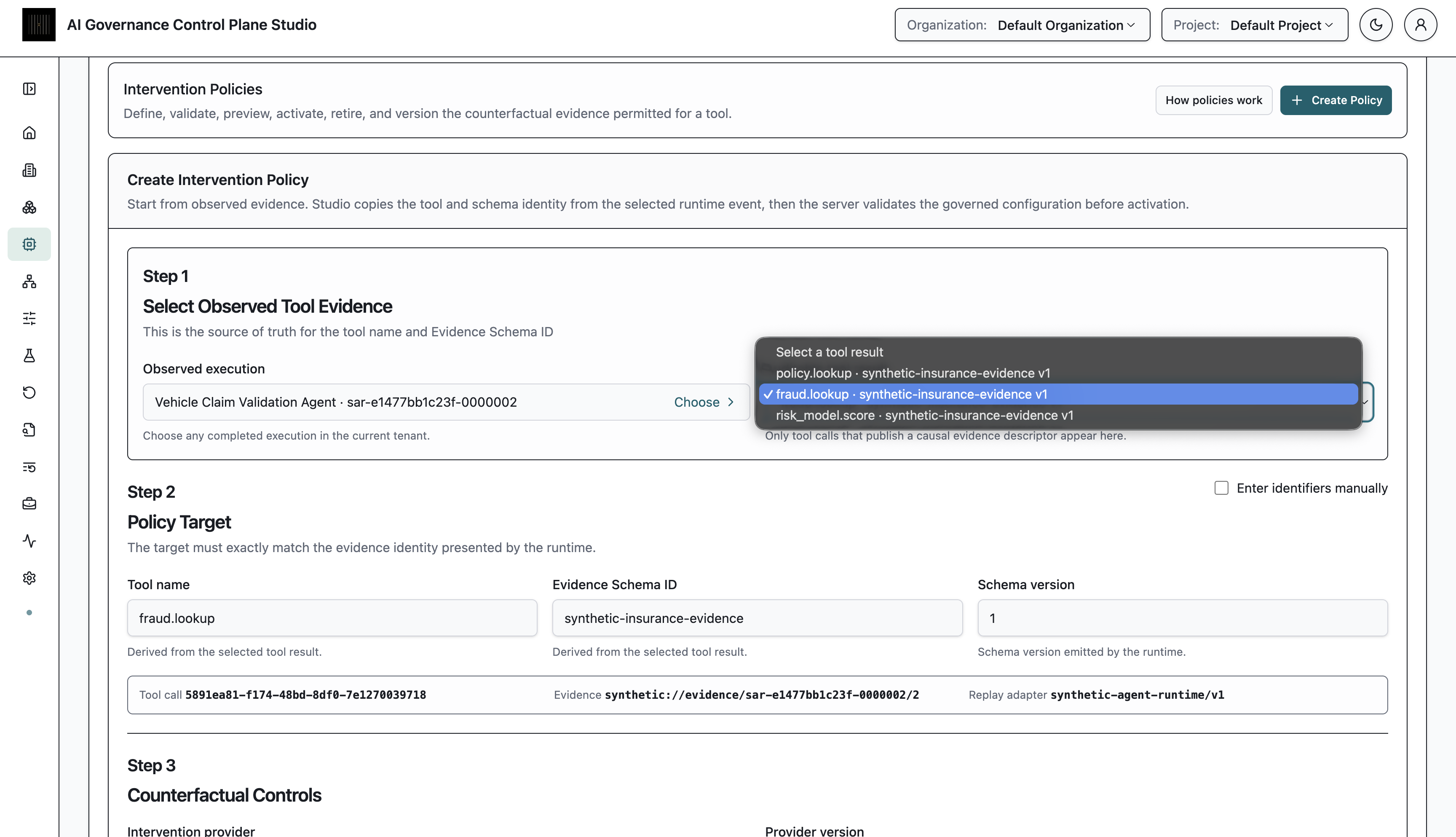

4. Select an auditable tool result. Studio copies its tool name and evidence schema; do not guess these values.

In the local fraud scenario, this can be the transaction lookup fromdemo-exec-ext-fraud-replay-source-001. A real runtime must publish the durable evidence reference, schema identity, and safe replay capability that make a tool result auditable.

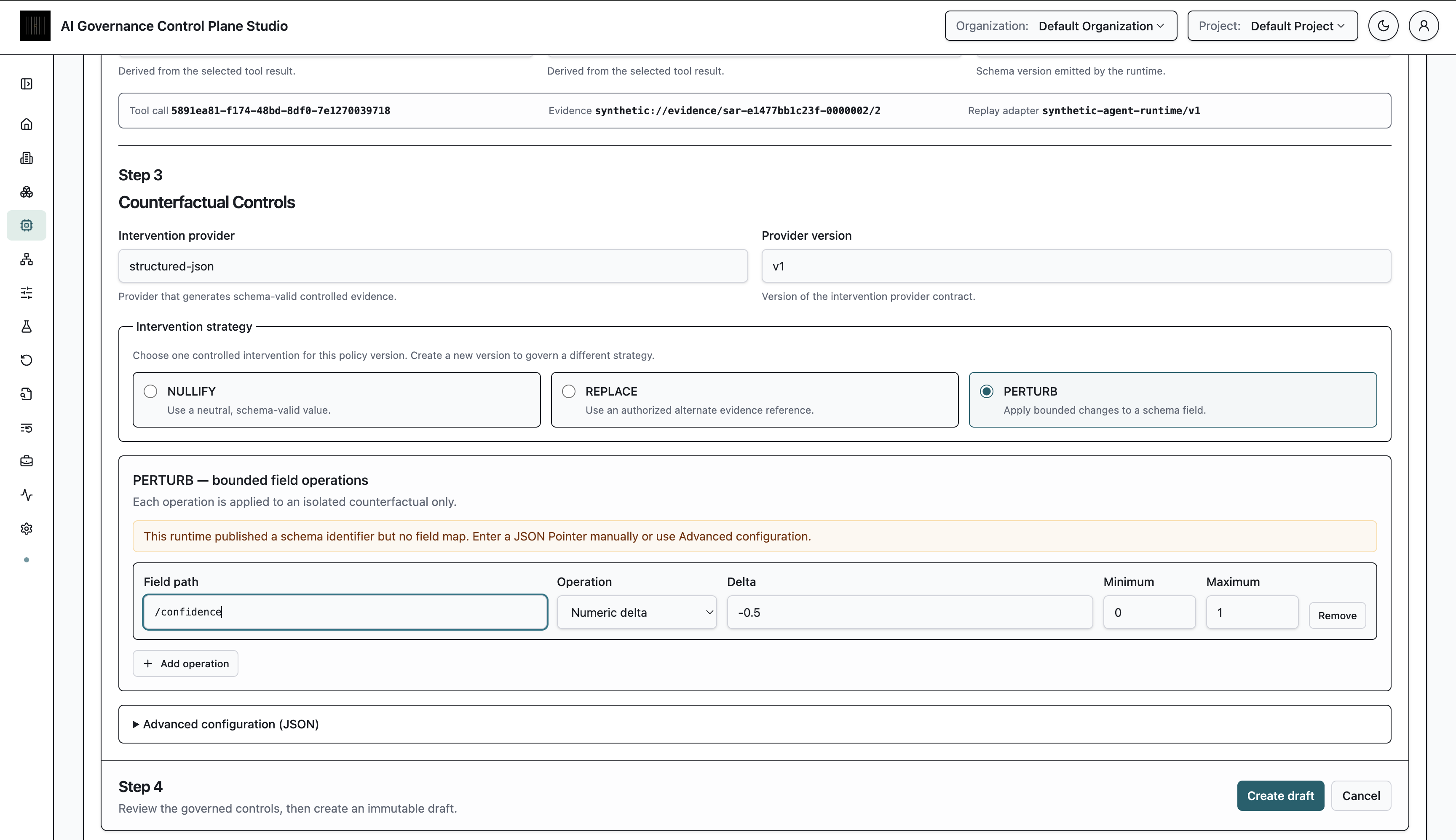

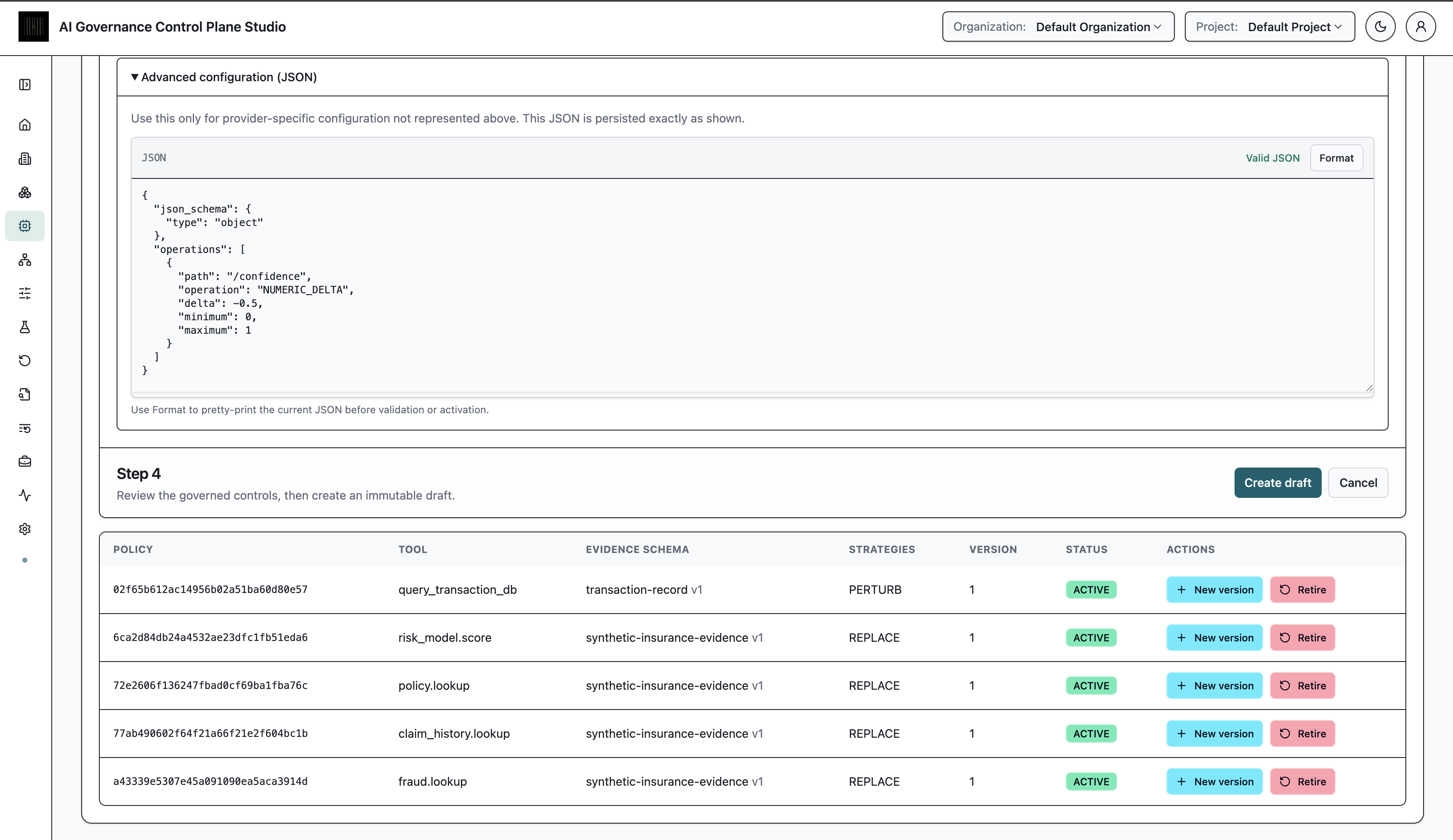

2. Create and Activate Policy

Choose one strategy for the policy version. For the local example, select PERTURB and use a bounded change to the transaction confidence field:

1. Select Create draft.
2. Select Preview to verify the proposed evidence is valid. Preview does not run the agent.
3. Select Validate, then Activate.

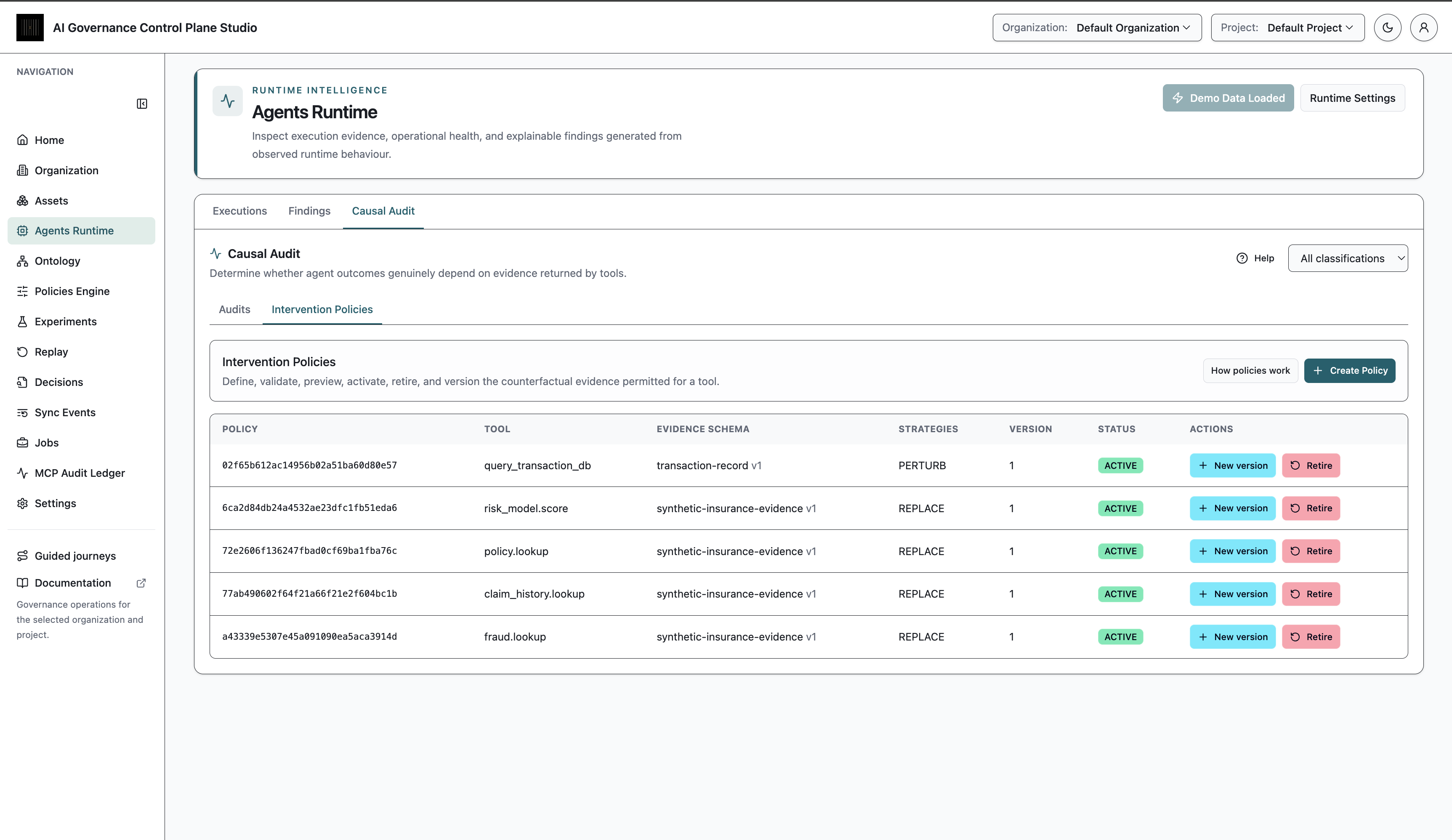

4. Record the returned policy ID and version.

The policy authorizes a narrowly defined test; it does not declare the outcome in advance. Create a new version if you need a different permitted change.

3. Eligibility

Ask the API whether this execution can safely be audited before you submit work. A non-eligible response is useful: it explains what capability is missing and does not start a replay.

export EXECUTION_ID=demo-exec-ext-fraud-replay-source-001
export POLICY_ID=replace-with-active-policy-id
export POLICY_VERSION=1

curl --get "$AI_GOVERNANCE_API_URL/api/v1/agents-runtime/executions/$EXECUTION_ID/causal-audit-eligibility" \
  --header "Authorization: Bearer $AI_GOVERNANCE_TOKEN" \
  --header "X-AI-Governance-Organization-Id: $AI_GOVERNANCE_ORGANIZATION_ID" \
  --header "X-AI-Governance-Project-Id: $AI_GOVERNANCE_PROJECT_ID" \
  --data-urlencode 'evaluator_ref=recorded-outcome/v1' \
  --data-urlencode "intervention_policy_id=$POLICY_ID" \
  --data-urlencode "intervention_policy_version=$POLICY_VERSION"

4. Submit Audit

This request creates durable asynchronous work. Use a stable policy version, sample count, and seed when you need the same request to be idempotent.

curl --request POST "$AI_GOVERNANCE_API_URL/api/v1/agents-runtime/causal-audits" \
  --header "Authorization: Bearer $AI_GOVERNANCE_TOKEN" \
  --header 'Content-Type: application/json' \
  --header "X-AI-Governance-Organization-Id: $AI_GOVERNANCE_ORGANIZATION_ID" \
  --header "X-AI-Governance-Project-Id: $AI_GOVERNANCE_PROJECT_ID" \
  --data "{
    "execution_id": "$EXECUTION_ID",
    "evaluator_ref": "recorded-outcome/v1",
    "intervention": {
      "strategy": "PERTURB",
      "counterfactual_samples": 3,
      "seed": 2,
      "intervention_policy_id": "$POLICY_ID",
      "intervention_policy_version": $POLICY_VERSION
    }
  }"

The response begins in a queued state. The replay worker performs the controlled replays and completes the audit only when all required lineage is available.

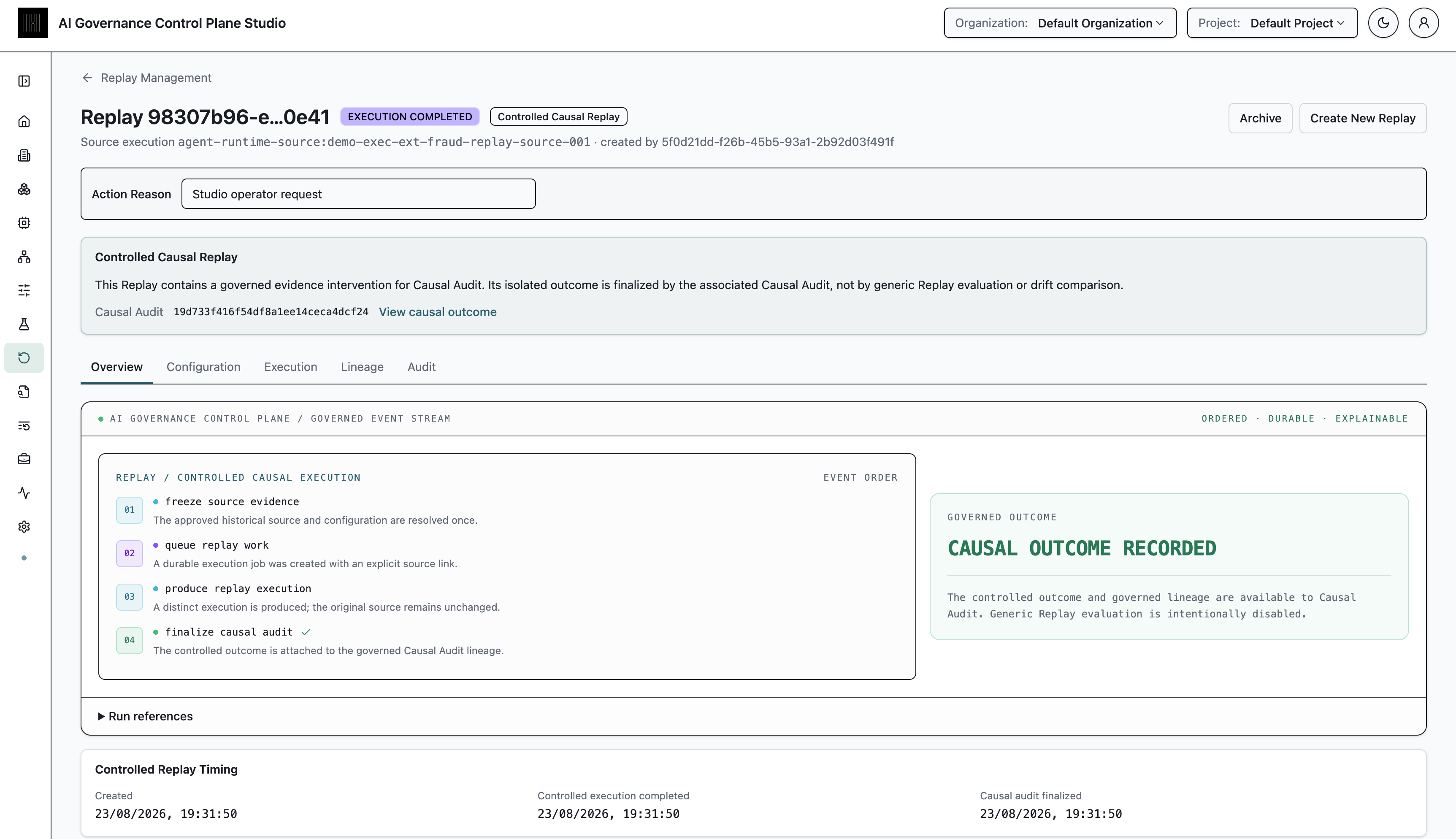

5. Follow the worker hand-off

A queued audit does not mean the answer has been calculated. It means the request and its exact inputs were saved safely. The following hand-off is what turns that request into a reviewable result:

Causal Audit worker
  1. freezes the execution, policy version, strategy, samples, and seed
  2. creates one controlled Replay for each required sample

Replay worker
  3. asks the runtime adapter to run each isolated counterfactual
  4. saves the produced execution and its bounded outcome artifact

Causal Audit worker
  5. checks every replay's lineage and scores the outcomes
  6. saves one immutable classification and influence result

Do not select the normal Evaluate Replay action for a controlled causal replay. That action belongs to the standard Replay workflow, which performs evaluation and drift comparison against a historical scorecard. Causal Audit already has the outcome artifact it needs, and its own worker finalizes the result instead.

If you want to understand the architecture behind this hand-off before continuing, read Controlled Replay Framework. This tutorial stays focused on the operator steps.

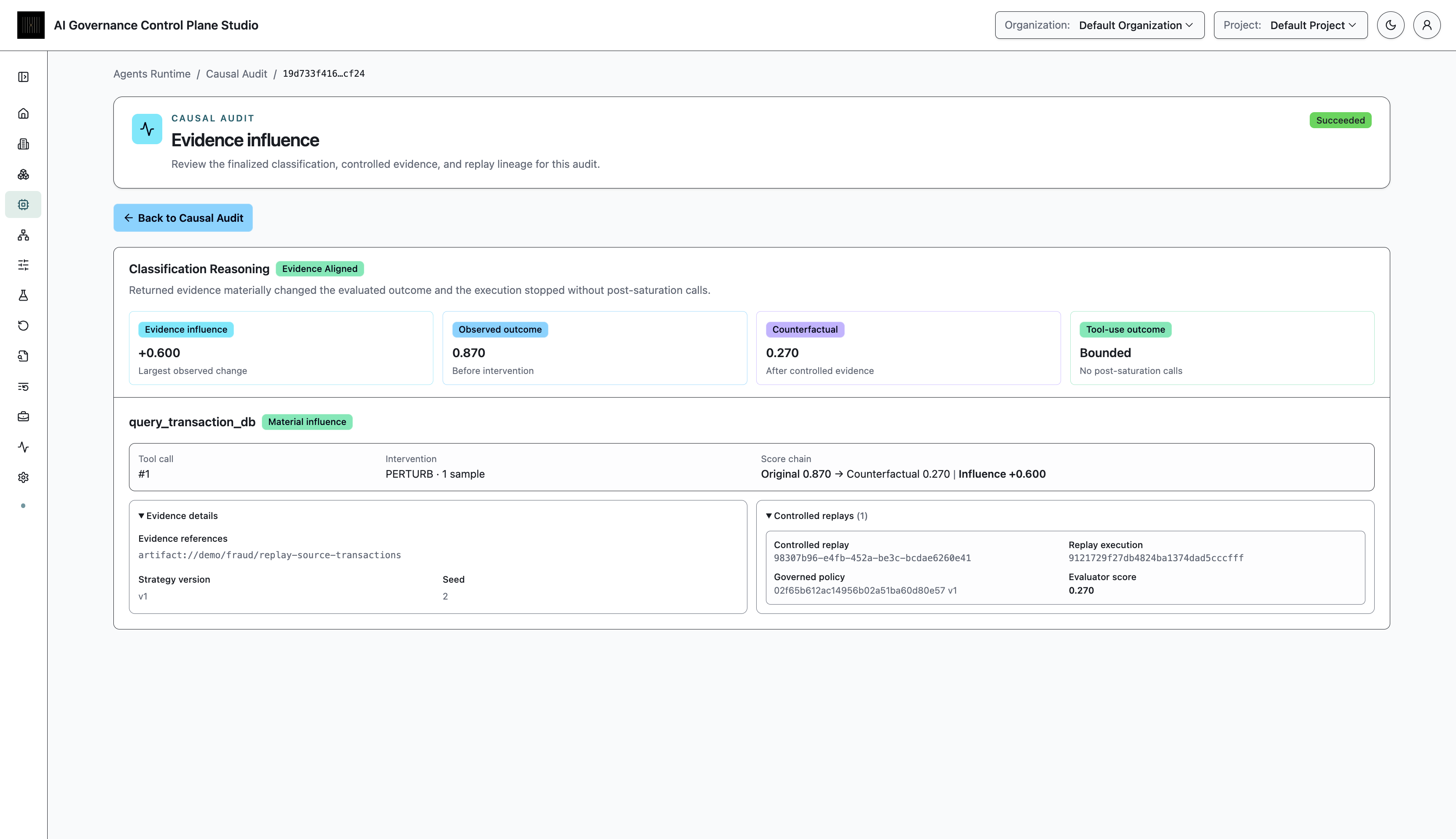

6. Review Result

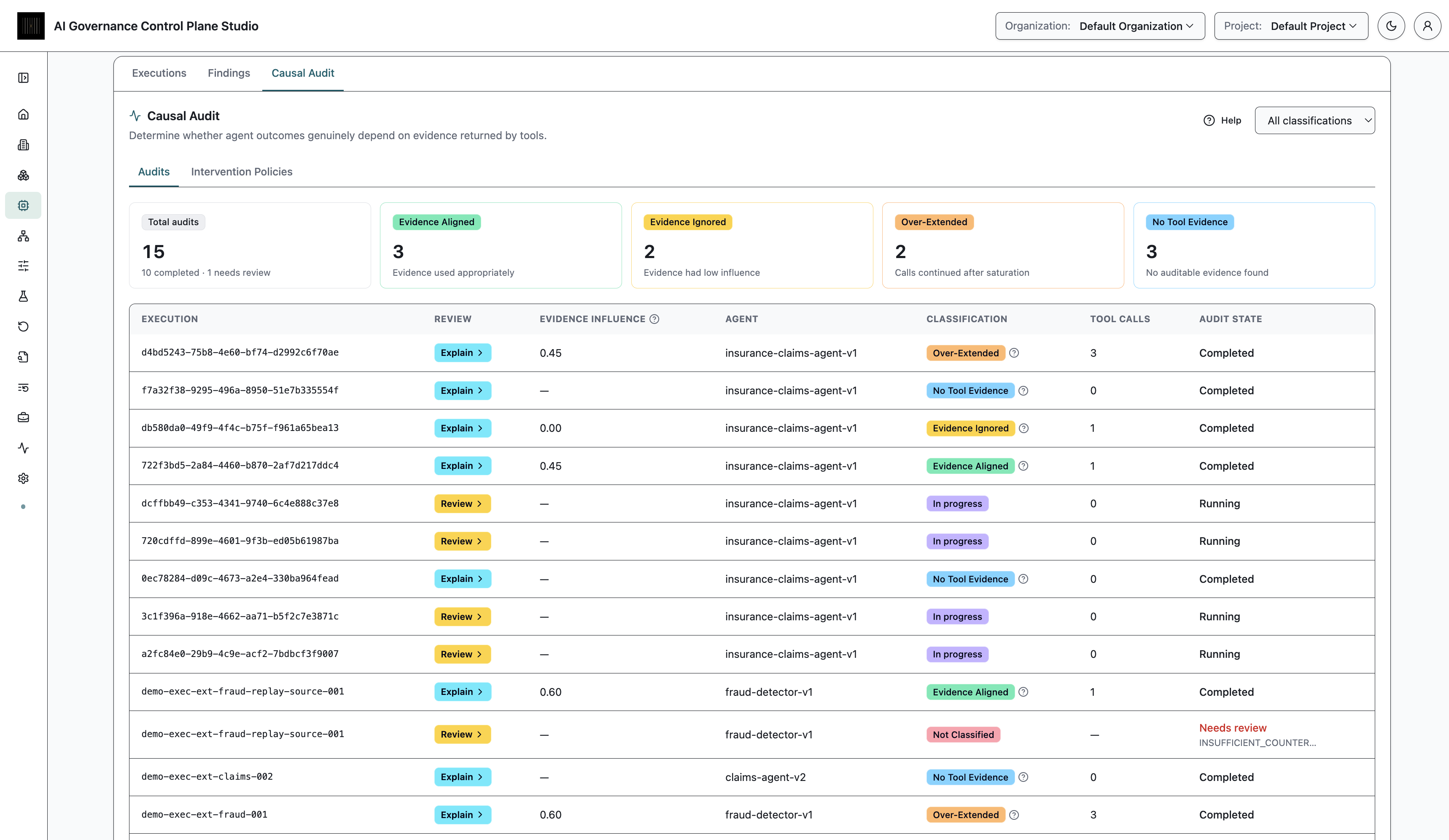

1. Return to Agents Runtime → Causal Audits.



2. Open the completed audit.



3. Read the classification, original and counterfactual outcome scores, and evidence influence.

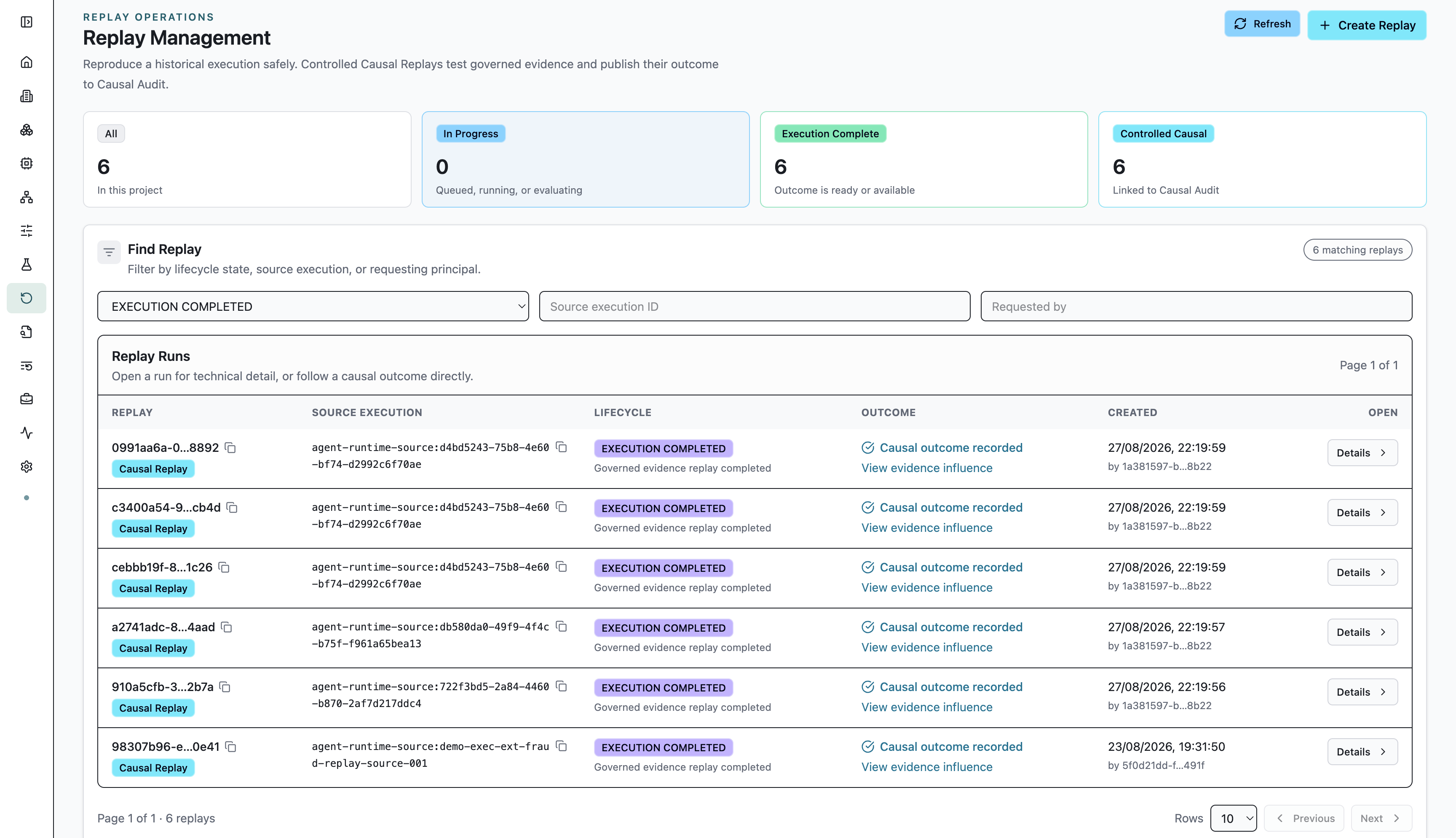

4. Follow the linked controlled replay IDs to inspect the policy version, intervention digest and produced execution.

What to do next

Read the Causal Audit reference for its safety model and limits. For the broader evidence model, return to Agents Runtime.
