Overview
A claims prompt change is not a release decision.
Prompt versioning records what changed in a policyholder-facing response. An experiment candidate binds that version to a model, dataset, and evaluator. Evaluation produces evidence. A policy version evaluates that evidence; only then does BHANUJ Platform persist a GovernanceDecision.
Claims prompt v1.0Claims prompt v1.1Release candidateEvaluation evidencePolicy v1GovernanceDecisionAPPROVED / BLOCKEDEvidence graph + lineage
Seeded data is the baseline
The local seed supplies stable prompt versions, candidates, runs, metrics, and graph relationships.
New records are production-shaped
This walkthrough creates and activates a policy version, then persists a new decision through the public REST API.
Seeded baseline
Start with durable history, not a fabricated test result.
Start the local BHANUJ OSS stack. It provisions Keycloak and seeds a tenant-scoped prompt history that this guide uses as a claims-triage baseline: demo-prompt-support-v1 at v1.0 and demo-prompt-support-v2 at v1.1. The v1.1 candidate has completed mock evaluation evidence.
terminal · BHANUJ OSS
git clone https://github.com/Bhanuj-AI/ai-governance-oss.git
cd ai-governance-oss
AI_GOVERNANCE_AUTO_SEED_DEMO_DATA=true ./servers.shterminal · authenticated local session
set -a
. ./.env.oauth.generated
set +a
export API=http://localhost:8000
export AI_GOVERNANCE_DEMO_TOKEN="$(uv run python -c '
from ai_governance.oauth import access_token_from_environment
token = access_token_from_environment()
assert token, "AI_GOVERNANCE_OAUTH_* credentials are required"
print(token)
')"
AUTH=(
-H "Authorization: Bearer $AI_GOVERNANCE_DEMO_TOKEN"
-H "X-AI-Governance-Project-Id: project_default"
)terminal · list prompt versions
curl --fail-with-body "${AUTH[@]}" "$API/api/v1/prompts" | jq .Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
[
{
"prompt_id": "demo-prompt-support-v1",
"name": "Demo Support Assistant",
"version": "v1.0",
"variables": [
"context",
"question"
],
"created_at": "2026-08-15T10:37:59.657194Z",
"created_by": "studio-demo",
"status": "ACTIVE",
"provenance": "MANAGED",
"source_system": null,
"source_reference": null,
"content_hash": null,
"content_available": true
},
{
"prompt_id": "demo-prompt-support-v2",
"name": "Demo Support Assistant",
"version": "v1.1",
"variables": [
"context",
"question"
],
"created_at": "2026-08-15T10:37:59.657194Z",
"created_by": "studio-demo",
"status": "ACTIVE",
"provenance": "MANAGED",
"source_system": null,
"source_reference": null,
"content_hash": null,
"content_available": true
},
{
"prompt_id": "f7dcee0b-6a48-5cab-a89b-3be661d3a98c",
"name": "walkthrough-support-assistant",
"version": "v1",
"variables": [
"question",
"context"
],
"created_at": "2026-08-15T10:33:23.213013Z",
"created_by": "d1e03a3c-49d3-42d0-bc0d-b8469dcf8926",
"status": "ACTIVE",
"provenance": "OBSERVED",
"source_system": "ai-governance-walkthrough",
"source_reference": "governed-replay:v1",
"content_hash": "sha256:3324abeafeff9bd07bc2c5dbcd16abb821d9eb1a73b9d76a9c75b1691fb2a8fd",
"content_available": true
}
]terminal · list claims-triage candidates
curl --fail-with-body "${AUTH[@]}" "$API/api/v1/experiments/demo-experiment-02/candidates" | jq .Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
[
{
"candidate_id": "demo-experiment-02-baseline",
"experiment_id": "demo-experiment-02",
"candidate_name": "Claims Triage Prompt Benchmark · Baseline",
"prompt_id": "demo-prompt-support-v1",
"prompt_version": "v1.0",
"model_id": "demo-model-general-v1",
"model_version": "2026.01",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"provider_name": "mock",
"provider_installation_id": null,
"runtime_connection_id": null,
"runtime_parameters": {
"temperature": 0.0,
"top_p": 1.0,
"max_tokens": 1024
},
"metadata": {
"seeded": true,
"variant": "baseline"
},
"created_at": "2026-08-11T10:37:59.633004Z"
},
{
"candidate_id": "demo-experiment-02-optimized",
"experiment_id": "demo-experiment-02",
"candidate_name": "Claims Triage Prompt Benchmark · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"provider_name": "mock",
"provider_installation_id": null,
"runtime_connection_id": null,
"runtime_parameters": {
"temperature": 0.2,
"top_p": 1.0,
"max_tokens": 1024
},
"metadata": {
"seeded": true,
"variant": "optimized"
},
"created_at": "2026-08-11T10:37:59.633004Z"
}
]The guide uses demo-experiment-02-optimized from the seeded Claims Triage Prompt Benchmark, which references the v1.1 prompt. The demo- IDs are intentionally fixed test fixtures; every new record created by the walkthrough uses claims-release naming.
Versioned policy
Create and activate the release rule.
The policy targets Candidate and evaluates a field from the supported policy schema: metrics.answer_relevance.score. A fresh name makes the command safe to repeat without overwriting a prior policy.
terminal · create policy draft
RUN_ID="claims-triage-prompt-release-$(date +%s)"
POLICY=$(jq -n --arg run_id "$RUN_ID" '{
name: "Claims Triage Prompt Release \($run_id)",
description: "Approve a policyholder claims-response prompt only when answer relevance meets the release threshold.",
organization_id: "org_default",
project_id: "project_default",
category: "PROMPT_SAFETY",
owner: "claims-ai-release-engineering",
created_by: "guide-user",
target_types: ["Candidate"],
rules: [{
rule_id: "approve-evaluated-candidate",
name: "Approve claims-response candidate above relevance threshold",
conditions: [{
field_path: "metrics.answer_relevance.score",
operator: "GREATER_THAN_OR_EQUAL",
expected_value: 0.80
}],
effect: "APPROVE",
reason_template: "Answer relevance satisfies the claims-response release threshold.",
priority: 100,
severity: "LOW"
}]
}' | curl --fail-with-body -sS -X POST "${AUTH[@]}" -H 'Content-Type: application/json' "$API/api/v1/policies" --data @-)
POLICY_ID="$(printf '%s' "$POLICY" | jq -r '.policy_id')"
POLICY_VERSION="$(printf '%s' "$POLICY" | jq -r '.draft_version.version')"Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"name": "Claims Triage Prompt Release claims-triage-prompt-release-1789555682",
"description": "Approve a policyholder claims-response prompt only when answer relevance meets the release threshold.",
"organization_id": "org_default",
"project_id": "project_default",
"category": "PROMPT_SAFETY",
"owner": "claims-ai-release-engineering",
"created_by": "guide-user",
"created_at": "2026-09-16T10:48:23.822098Z",
"updated_at": "2026-09-16T10:48:23.822098Z",
"active_version": null,
"draft_version": {
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"version": "1",
"status": "DRAFT",
"target_types": [
"Candidate"
],
"rules": [
{
"rule_id": "approve-evaluated-candidate",
"name": "Approve claims-response candidate above relevance threshold",
"priority": 100,
"effect": "APPROVE",
"reason_template": "Answer relevance satisfies the claims-response release threshold.",
"severity": "LOW",
"conditions": [
{
"field_path": "metrics.answer_relevance.score",
"operator": "GREATER_THAN_OR_EQUAL",
"expected_value": 0.8,
"metadata": {}
}
],
"metadata": {
"severity": "LOW"
}
}
],
"created_by": "guide-user",
"created_at": "2026-09-16T10:48:23.822098Z",
"activated_at": null,
"deprecated_at": null,
"archived_at": null,
"metadata": {}
},
"versions": [
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"version": "1",
"status": "DRAFT",
"target_types": [
"Candidate"
],
"created_by": "guide-user",
"created_at": "2026-09-16T10:48:23.822098Z",
"activated_at": null,
"deprecated_at": null,
"archived_at": null
}
],
"metadata": {}
}terminal · activate policy version
curl --fail-with-body -X POST "${AUTH[@]}" -H 'Content-Type: application/json' "$API/api/v1/policies/$POLICY_ID/versions/$POLICY_VERSION/activate" --data '{"activated_by":"guide-user"}' | jq .Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"name": "Claims Triage Prompt Release claims-triage-prompt-release-1789555682",
"description": "Approve a policyholder claims-response prompt only when answer relevance meets the release threshold.",
"organization_id": "org_default",
"project_id": "project_default",
"category": "PROMPT_SAFETY",
"owner": "claims-ai-release-engineering",
"created_by": "guide-user",
"created_at": "2026-09-16T10:48:23.822098Z",
"updated_at": "2026-09-16T10:49:17.920544Z",
"active_version": {
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"version": "1",
"status": "ACTIVE",
"target_types": [
"Candidate"
],
"rules": [
{
"rule_id": "approve-evaluated-candidate",
"name": "Approve claims-response candidate above relevance threshold",
"priority": 100,
"effect": "APPROVE",
"reason_template": "Answer relevance satisfies the claims-response release threshold.",
"severity": "LOW",
"conditions": [
{
"field_path": "metrics.answer_relevance.score",
"operator": "GREATER_THAN_OR_EQUAL",
"expected_value": 0.8,
"metadata": {}
}
],
"metadata": {
"severity": "LOW"
}
}
],
"created_by": "guide-user",
"created_at": "2026-09-16T10:48:23.822098Z",
"activated_at": "2026-09-16T10:49:17.916133Z",
"deprecated_at": null,
"archived_at": null,
"metadata": {
"activated_by": "guide-user"
}
},
"draft_version": null,
"versions": [
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"version": "1",
"status": "ACTIVE",
"target_types": [
"Candidate"
],
"created_by": "guide-user",
"created_at": "2026-09-16T10:48:23.822098Z",
"activated_at": "2026-09-16T10:49:17.916133Z",
"deprecated_at": null,
"archived_at": null
}
],
"metadata": {}
}Why this is versioned: the API creates an initial draft version and the activate call makes that exact policy content effective. A later threshold change is a new policy version, not an edit to the decision's historical rule.
Governance decision
Evaluate evidence; persist the outcome.
This call evaluates the same immutable claims-triage candidate evidence against the activated policy and persists a deterministic GovernanceDecision. The seeded answer relevance is 0.84, so the 0.80 rule returns APPROVED.
terminal · evaluate candidate
DECISION=$(jq -n --arg policy_id "$POLICY_ID" --arg run_id "$RUN_ID" '{
target_type: "Candidate",
target_id: "demo-experiment-02-optimized",
decision_type: "APPROVE",
policy_ids: [$policy_id],
correlation_id: $run_id,
request_id: $run_id,
metadata: {source: "developer-guide"}
}' | curl --fail-with-body -sS -X POST "${AUTH[@]}" -H 'Content-Type: application/json' "$API/api/v1/decisions/evaluate" --data @-)
DECISION_ID="$(printf '%s' "$DECISION" | jq -r '.decision.decision_id')"
printf 'Governance decision: %s\n' "$DECISION_ID"
printf '%s' "$DECISION" | jq '{status: .decision.status, policy_outcomes: .policy_outcomes}'Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
{
"status": "APPROVED",
"policy_outcomes": [
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"policy_version": "1",
"matched_rule_id": "approve-evaluated-candidate",
"effect": "APPROVE",
"reason": "Answer relevance satisfies the claims-response release threshold.",
"matched": true,
"metadata": {
"rule_priority": 100
}
}
]
}To block the same candidate, create a later policy version with a higher threshold and a BLOCK effect, activate it, then submit a new decision request ID. The prior APPROVED decision remains immutable and reviewable.

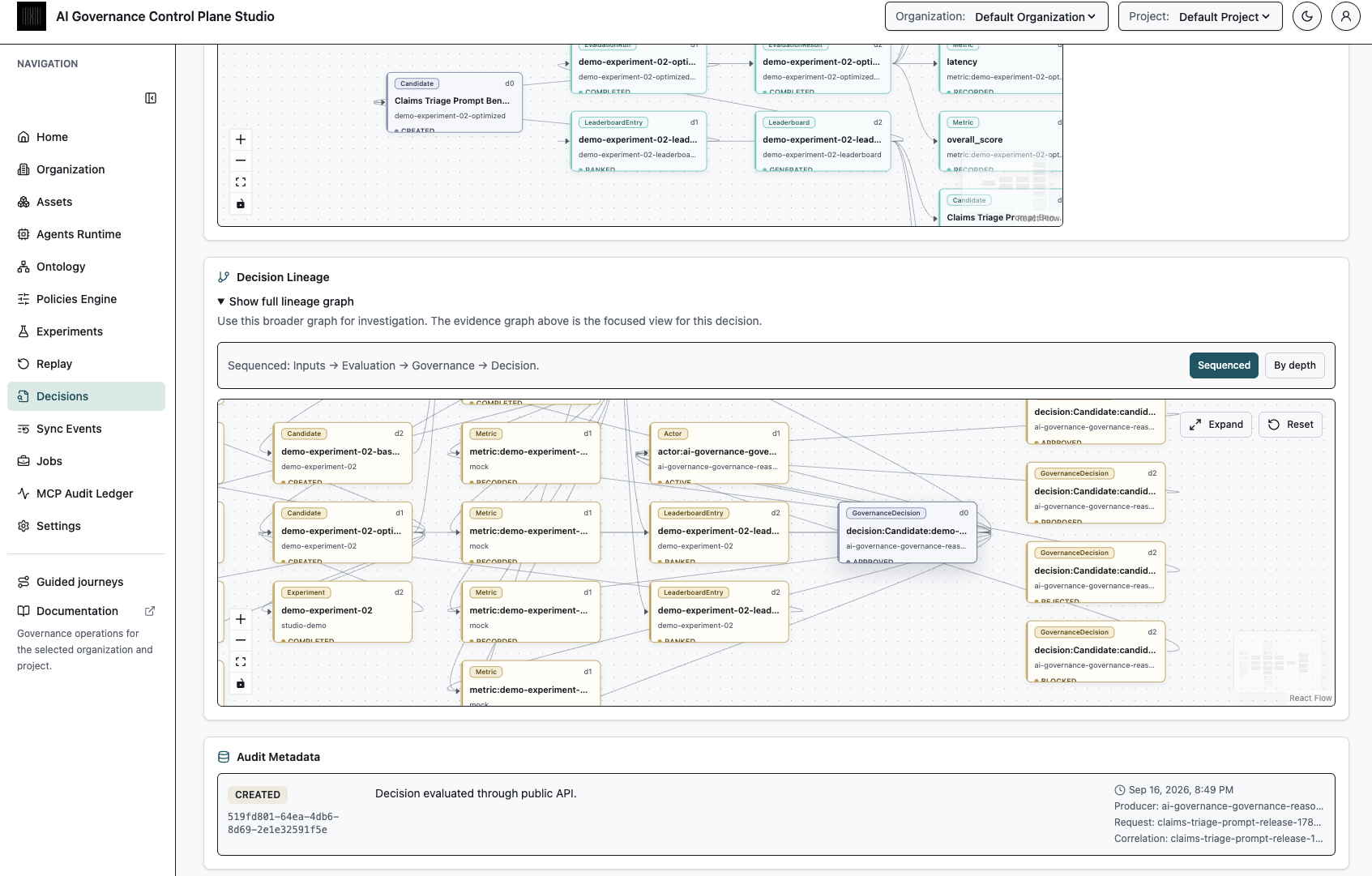

Evidence and lineage
Inspect the decision, not just its label.

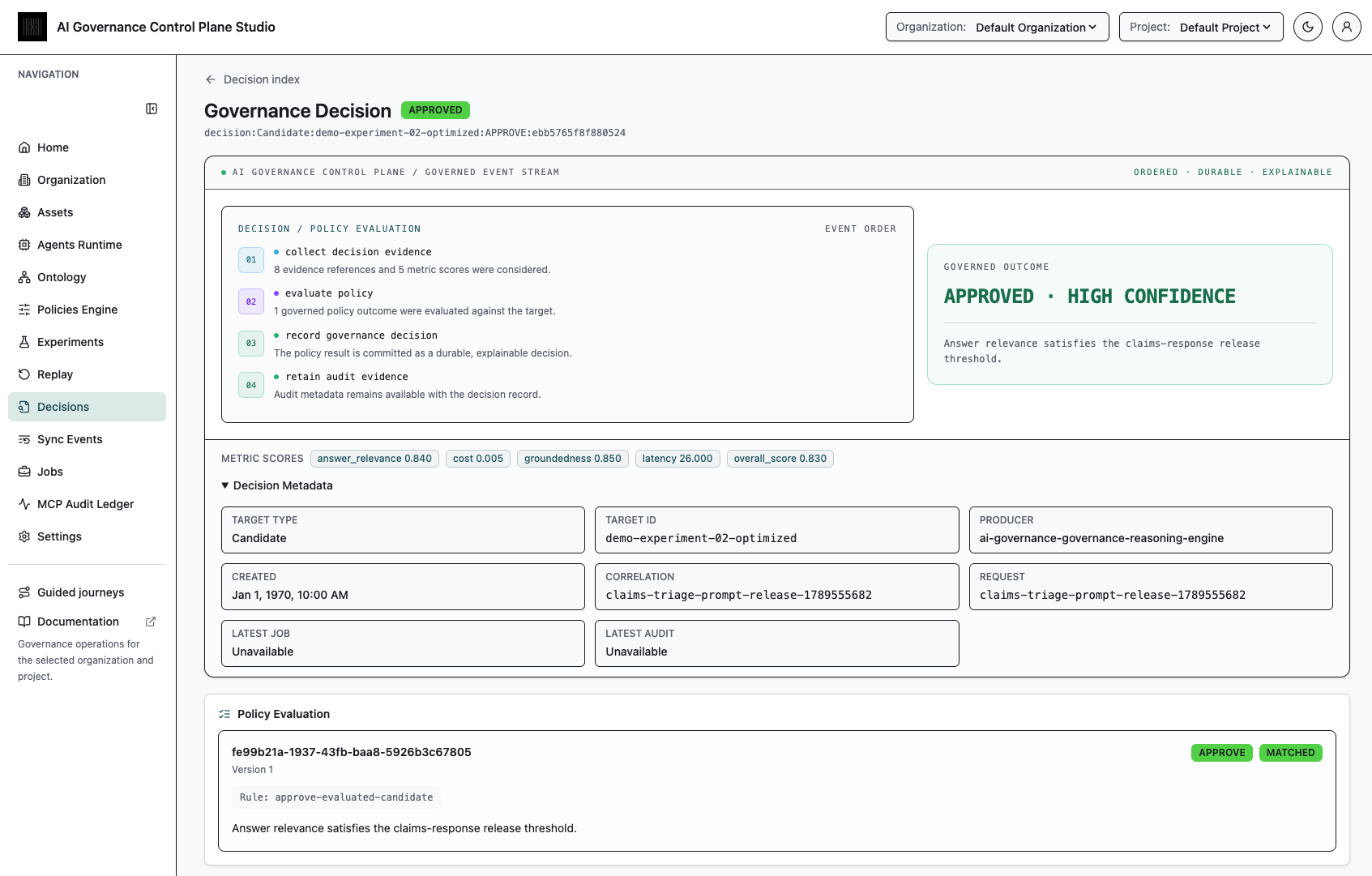

Use the decision ID returned above in Studio's Governance Decisions page, or query the public API. The detail response records the policy outcome and audit record; the evidence endpoint rebuilds the evidence graph; lineage returns the ontology subgraph around that exact decision.
terminal · decision detail
curl --fail-with-body "${AUTH[@]}" "$API/api/v1/decisions/$DECISION_ID/detail" | jq .
Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
{
"decision": {
"decision_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"decision_type": "APPROVE",
"status": "APPROVED",
"target": {
"target_type": "Candidate",
"target_id": "demo-experiment-02-optimized"
},
"reason": "Answer relevance satisfies the claims-response release threshold.",
"confidence": "HIGH",
"evidence": [
{
"evidence_type": "EvaluationResult",
"evidence_id": "demo-experiment-02-optimized-evaluation",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Leaderboard",
"evidence_id": "demo-experiment-02-leaderboard",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:answer_relevance",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:cost",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:groundedness",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:latency",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:overall_score",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "MissingEvidence",
"evidence_id": "725d77ea47d53816",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {
"missing_evidence_type": "Policy",
"severity": "INFO"
}
}
],
"policies": [
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"policy_version": "1",
"policy_name": "Claims Triage Prompt Release claims-triage-prompt-release-1789555682",
"metadata": {}
}
],
"provenance": {
"producer_type": "POLICY_ENGINE",
"producer_id": "ai-governance-governance-reasoning-engine",
"actor_id": null,
"correlation_id": "claims-triage-prompt-release-1789555682",
"request_id": "claims-triage-prompt-release-1789555682",
"created_at": "1970-01-01T00:00:00Z"
},
"supersession": {
"supersedes_decision_id": null,
"superseded_by_decision_id": null,
"supersession_reason": null
},
"metadata": {
"source": "developer-guide"
},
"finalized_at": null,
"archived_at": null
},
"evidence_summary": {
"target_type": "Candidate",
"target_id": "demo-experiment-02-optimized",
"metric_scores": {
"answer_relevance": 0.8400000000000001,
"cost": 0.005,
"groundedness": 0.8500000000000001,
"latency": 26.0,
"overall_score": 0.8300000000000001
},
"metric_failures": [],
"threshold_breaches": [],
"drift_severity": null,
"latest_job_status": null,
"latest_audit_status": null,
"evaluation_result_ids": [
"demo-experiment-02-optimized-evaluation"
],
"metric_ids": [
"metric:demo-experiment-02-optimized-evaluation:answer_relevance",
"metric:demo-experiment-02-optimized-evaluation:cost",
"metric:demo-experiment-02-optimized-evaluation:groundedness",
"metric:demo-experiment-02-optimized-evaluation:latency",
"metric:demo-experiment-02-optimized-evaluation:overall_score"
],
"drift_analysis_ids": [],
"leaderboard_ids": [
"demo-experiment-02-leaderboard"
],
"job_ids": [],
"mcp_audit_ids": [],
"policy_ids": [],
"missing_evidence": [
{
"evidence_type": "Policy",
"reason": "No policy reference is connected.",
"severity": "INFO",
"metadata": {}
}
],
"metadata": {
"depth": 3,
"limit": 500,
"target_found": true
}
},
"policy_outcomes": [
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"policy_version": "1",
"matched_rule_id": "approve-evaluated-candidate",
"effect": "APPROVE",
"reason": "Answer relevance satisfies the claims-response release threshold.",
"matched": true,
"metadata": {
"rule_priority": 100
}
}
],
"audit_records": [
{
"audit_id": "519fd801-64ea-4db6-8d69-2e1e32591f5e",
"decision_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"action": "CREATED",
"producer_id": "ai-governance-governance-reasoning-engine",
"reason": "Decision evaluated through public API.",
"actor_id": null,
"correlation_id": "claims-triage-prompt-release-1789555682",
"request_id": "claims-triage-prompt-release-1789555682",
"created_at": "2026-09-16T10:49:32.359135Z",
"metadata": {}
}
]
}terminal · decision evidence graph
curl --fail-with-body "${AUTH[@]}" "$API/api/v1/decisions/$DECISION_ID/evidence" | jq .
Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
{
"decision_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"evidence_references": [
{
"evidence_type": "EvaluationResult",
"evidence_id": "demo-experiment-02-optimized-evaluation",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Leaderboard",
"evidence_id": "demo-experiment-02-leaderboard",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:answer_relevance",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:cost",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:groundedness",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:latency",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:overall_score",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "MissingEvidence",
"evidence_id": "725d77ea47d53816",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {
"missing_evidence_type": "Policy",
"severity": "INFO"
}
}
],
"evidence_graph": {
"target_type": "Candidate",
"target_id": "demo-experiment-02-optimized",
"nodes": [
{
"entity_type": "Candidate",
"entity_id": "demo-experiment-02-baseline",
"label": "Claims Triage Prompt Benchmark · Baseline",
"lifecycle": "CREATED",
"attributes": {
"candidate_id": "demo-experiment-02-baseline",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-02",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "baseline"
},
"model_id": "demo-model-general-v1",
"model_version": "2026.01",
"name": "Claims Triage Prompt Benchmark · Baseline",
"prompt_id": "demo-prompt-support-v1",
"prompt_version": "v1.0",
"temperature": 0.0,
"top_p": 1.0
},
"metadata": {
"last_synchronized_at": "2026-09-16T10:46:51.808326+00:00",
"projection_hash": "c4f2da2d0a9eaa8456f11ac5f7e7c43211af5b18f9d327d09a5fbd028625eabd",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "f987e5a7dfc10c279c97b2a92669262842396db70b9dbf77b08cadea2f6e6de6",
"synchronized_from": "experiment_candidate_service"
}
},
{
"entity_type": "Candidate",
"entity_id": "demo-experiment-02-optimized",
"label": "Claims Triage Prompt Benchmark · Optimized",
"lifecycle": "CREATED",
"attributes": {
"candidate_id": "demo-experiment-02-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-02",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Claims Triage Prompt Benchmark · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"metadata": {
"last_synchronized_at": "2026-09-16T10:46:51.829142+00:00",
"projection_hash": "f34b955c30ec19b759a90e00daf2ea742bc16c98e1cd1e49b2b9717e8b56b40d",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "6c28307a44143a7cf7bc56a2dcd2ae47e062e15df04826067904e2f346da6123",
"synchronized_from": "experiment_candidate_service"
}
},
{
"entity_type": "EvaluationResult",
"entity_id": "demo-experiment-02-optimized-evaluation",
"label": null,
"lifecycle": "COMPLETED",
"attributes": {
"evaluation_id": "demo-experiment-02-optimized-evaluation",
"evaluator_type": "mock",
"evaluator_version": "1.0",
"execution_id": "demo-experiment-02-optimized-run",
"provider_metadata": {
"seeded": true
}
},
"metadata": {
"synchronized_from": "evaluation_repository"
}
},
{
"entity_type": "EvaluationRun",
"entity_id": "demo-experiment-02-baseline-run",
"label": null,
"lifecycle": "COMPLETED",
"attributes": {
"candidate_id": "demo-experiment-02-baseline",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-02",
"run_id": "demo-experiment-02-baseline-run",
"completed_at": "2026-08-14T10:38:21.880382+00:00",
"evaluation_result_id": "demo-experiment-02-baseline-evaluation",
"started_at": "2026-08-14T10:37:59.880382+00:00",
"status": "COMPLETED"
},
"metadata": {
"last_synchronized_at": "2026-09-16T10:46:52.430746+00:00",
"projection_hash": "cc6234cbe4b76429ecd47b23b853aafc513519aaef3b4715c404553c2b83352d",
"projection_source": "evaluation_run_repository",
"projection_version": "1.0.0",
"relationship_set_hash": "4e5266f5a5802b217af111e76b6e5f154634569bd1a89803217bf812df16cafd",
"synchronized_from": "evaluation_run_repository"
}
},
{
"entity_type": "EvaluationRun",
"entity_id": "demo-experiment-02-optimized-run",
"label": null,
"lifecycle": "COMPLETED",
"attributes": {
"candidate_id": "demo-experiment-02-optimized",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-02",
"run_id": "demo-experiment-02-optimized-run",
"completed_at": "2026-08-13T10:38:25.880382+00:00",
"evaluation_result_id": "demo-experiment-02-optimized-evaluation",
"started_at": "2026-08-13T10:37:59.880382+00:00",
"status": "COMPLETED"
},
"metadata": {
"last_synchronized_at": "2026-09-16T10:46:52.443536+00:00",
"projection_hash": "eb3167a83605642a738bb864760614f2475634c057657f925f6f4d12e05e656d",
"projection_source": "evaluation_run_repository",
"projection_version": "1.0.0",
"relationship_set_hash": "d9070ee01dd0cd9a24d29ab548fc54ec3568b441fbea5606a969cfff0be8bc5b",
"synchronized_from": "evaluation_run_repository"
}
},
{
"entity_type": "Leaderboard",
"entity_id": "demo-experiment-02-leaderboard",
"label": null,
"lifecycle": "GENERATED",
"attributes": {
"experiment_id": "demo-experiment-02",
"generated_at": "2026-08-15T10:37:59.880382+00:00",
"leaderboard_id": "demo-experiment-02-leaderboard",
"ranking_strategy": "overall_score"
},
"metadata": {
"last_synchronized_at": "2026-09-16T10:46:52.683784+00:00",
"projection_hash": "3d4af77b39c266fd7fed8d233e0418549c16e40d91dce5d771e3cb6733b3cb9b",
"projection_source": "leaderboard_repository",
"projection_version": "1.0.0",
"relationship_set_hash": "65ec277e1f8bf97ee155690c79886da84da4f8eb2888ec800723145ee9ecba11",
"synchronized_from": "leaderboard_repository"
}
},
{
"entity_type": "LeaderboardEntry",
"entity_id": "demo-experiment-02-leaderboard-entry-1",
"label": null,
"lifecycle": "RANKED",
"attributes": {
"candidate_id": "demo-experiment-02-baseline",
"cost": 0.0025,
"latency": 22.0,
"metrics": {
"answer_relevance": 0.92,
"groundedness": 0.93
},
"overall_score": 0.91,
"rank": 1,
"reason": "Seeded completed evaluation evidence."
},
"metadata": {
"synchronized_from": "leaderboard_repository"
}
},
{
"entity_type": "LeaderboardEntry",
"entity_id": "demo-experiment-02-leaderboard-entry-2",
"label": null,
"lifecycle": "RANKED",
"attributes": {
"candidate_id": "demo-experiment-02-optimized",
"cost": 0.005,
"latency": 26.0,
"metrics": {
"answer_relevance": 0.8400000000000001,
"groundedness": 0.8500000000000001
},
"overall_score": 0.8300000000000001,
"rank": 2,
"reason": "Seeded completed evaluation evidence."
},
"metadata": {
"synchronized_from": "leaderboard_repository"
}
},
{
"entity_type": "Metric",
"entity_id": "metric:demo-experiment-02-optimized-evaluation:answer_relevance",
"label": "answer_relevance",
"lifecycle": "RECORDED",
"attributes": {
"explanation": null,
"metric_name": "answer_relevance",
"metric_value": 0.8400000000000001
},
"metadata": {
"synchronized_from": "evaluation_repository"
}
},
{
"entity_type": "Metric",
"entity_id": "metric:demo-experiment-02-optimized-evaluation:cost",
"label": "cost",
"lifecycle": "RECORDED",
"attributes": {
"explanation": null,
"metric_name": "cost",
"metric_value": 0.005
},
"metadata": {
"synchronized_from": "evaluation_repository"
}
},
{
"entity_type": "Metric",
"entity_id": "metric:demo-experiment-02-optimized-evaluation:groundedness",
"label": "groundedness",
"lifecycle": "RECORDED",
"attributes": {
"explanation": null,
"metric_name": "groundedness",
"metric_value": 0.8500000000000001
},
"metadata": {
"synchronized_from": "evaluation_repository"
}
},
{
"entity_type": "Metric",
"entity_id": "metric:demo-experiment-02-optimized-evaluation:latency",
"label": "latency",
"lifecycle": "RECORDED",
"attributes": {
"explanation": null,
"metric_name": "latency",
"metric_value": 26.0
},
"metadata": {
"synchronized_from": "evaluation_repository"
}
},
{
"entity_type": "Metric",
"entity_id": "metric:demo-experiment-02-optimized-evaluation:overall_score",
"label": "overall_score",
"lifecycle": "RECORDED",
"attributes": {
"explanation": null,
"metric_name": "overall_score",
"metric_value": 0.8300000000000001
},
"metadata": {
"synchronized_from": "evaluation_repository"
}
}
],
"edges": [
{
"relationship_type": "EXECUTES",
"source_type": "EvaluationRun",
"source_id": "demo-experiment-02-optimized-run",
"target_type": "Candidate",
"target_id": "demo-experiment-02-optimized",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "GENERATED_FROM",
"source_type": "Leaderboard",
"source_id": "demo-experiment-02-leaderboard",
"target_type": "EvaluationRun",
"target_id": "demo-experiment-02-baseline-run",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "GENERATED_FROM",
"source_type": "Leaderboard",
"source_id": "demo-experiment-02-leaderboard",
"target_type": "EvaluationRun",
"target_id": "demo-experiment-02-optimized-run",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "HAS_ENTRY",
"source_type": "Leaderboard",
"source_id": "demo-experiment-02-leaderboard",
"target_type": "LeaderboardEntry",
"target_id": "demo-experiment-02-leaderboard-entry-1",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "HAS_ENTRY",
"source_type": "Leaderboard",
"source_id": "demo-experiment-02-leaderboard",
"target_type": "LeaderboardEntry",
"target_id": "demo-experiment-02-leaderboard-entry-2",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "HAS_METRIC",
"source_type": "EvaluationResult",
"source_id": "demo-experiment-02-optimized-evaluation",
"target_type": "Metric",
"target_id": "metric:demo-experiment-02-optimized-evaluation:answer_relevance",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "HAS_METRIC",
"source_type": "EvaluationResult",
"source_id": "demo-experiment-02-optimized-evaluation",
"target_type": "Metric",
"target_id": "metric:demo-experiment-02-optimized-evaluation:cost",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "HAS_METRIC",
"source_type": "EvaluationResult",
"source_id": "demo-experiment-02-optimized-evaluation",
"target_type": "Metric",
"target_id": "metric:demo-experiment-02-optimized-evaluation:groundedness",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "HAS_METRIC",
"source_type": "EvaluationResult",
"source_id": "demo-experiment-02-optimized-evaluation",
"target_type": "Metric",
"target_id": "metric:demo-experiment-02-optimized-evaluation:latency",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "HAS_METRIC",
"source_type": "EvaluationResult",
"source_id": "demo-experiment-02-optimized-evaluation",
"target_type": "Metric",
"target_id": "metric:demo-experiment-02-optimized-evaluation:overall_score",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "PRODUCES",
"source_type": "EvaluationRun",
"source_id": "demo-experiment-02-optimized-run",
"target_type": "EvaluationResult",
"target_id": "demo-experiment-02-optimized-evaluation",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "RANKS",
"source_type": "LeaderboardEntry",
"source_id": "demo-experiment-02-leaderboard-entry-2",
"target_type": "Candidate",
"target_id": "demo-experiment-02-optimized",
"metadata": {
"synchronized_from": "ontology_sync"
}
},
{
"relationship_type": "RECOMMENDS",
"source_type": "Leaderboard",
"source_id": "demo-experiment-02-leaderboard",
"target_type": "Candidate",
"target_id": "demo-experiment-02-baseline",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
],
"missing": [
{
"evidence_type": "Policy",
"reason": "No policy reference is connected.",
"severity": "INFO",
"metadata": {}
}
],
"metadata": {
"depth": 3,
"limit": 500,
"target_found": true
}
}
}
terminal · decision lineage
curl --fail-with-body "${AUTH[@]}" "$API/api/v1/decisions/$DECISION_ID/lineage?depth=3" | jq .Response
Copyable response shape. Generated IDs and timestamps will differ in your environment.
response.json
{
"decision": {
"decision_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"decision_type": "APPROVE",
"status": "APPROVED",
"target": {
"target_type": "Candidate",
"target_id": "demo-experiment-02-optimized"
},
"reason": "Answer relevance satisfies the claims-response release threshold.",
"confidence": "HIGH",
"evidence": [
{
"evidence_type": "EvaluationResult",
"evidence_id": "demo-experiment-02-optimized-evaluation",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Leaderboard",
"evidence_id": "demo-experiment-02-leaderboard",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:answer_relevance",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:cost",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:groundedness",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:latency",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "Metric",
"evidence_id": "metric:demo-experiment-02-optimized-evaluation:overall_score",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {}
},
{
"evidence_type": "MissingEvidence",
"evidence_id": "725d77ea47d53816",
"relationship_type": null,
"source": "governance-reasoning-engine",
"metadata": {
"missing_evidence_type": "Policy",
"severity": "INFO"
}
}
],
"policies": [
{
"policy_id": "fe99b21a-1937-43fb-baa8-5926b3c67805",
"policy_version": "1",
"policy_name": "Claims Triage Prompt Release claims-triage-prompt-release-1789555682",
"metadata": {}
}
],
"provenance": {
"producer_type": "POLICY_ENGINE",
"producer_id": "ai-governance-governance-reasoning-engine",
"actor_id": null,
"correlation_id": "claims-triage-prompt-release-1789555682",
"request_id": "claims-triage-prompt-release-1789555682",
"created_at": "1970-01-01T00:00:00Z"
},
"supersession": {
"supersedes_decision_id": null,
"superseded_by_decision_id": null,
"supersession_reason": null
},
"metadata": {
"source": "developer-guide"
},
"finalized_at": null,
"archived_at": null
},
"subgraph": {
"nodes": [
{
"entity": {
"entity_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"entity_type": "GovernanceDecision",
"lifecycle": "APPROVED",
"owner": "ai-governance-governance-reasoning-engine",
"ontology_version": "1.1.0",
"created_at": "1970-01-01T00:00:00Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:59.440846+00:00",
"projection_hash": "b37ea7314b54fbf4d35d09f8f2bef716ad09eaacf3d86e2e323daedb4463311f",
"projection_source": "governance_decisions",
"projection_version": "1.0.0",
"relationship_set_hash": "96b3d577d9dad41abd4db5c3df2e3d499a23ad92bd9e77c0be1437164ce2d44c",
"synchronized_from": "governance_decision"
},
"immutable_attributes": {
"created_by": "ai-governance-governance-reasoning-engine",
"decision_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"decision_type": "APPROVE",
"reason": "Answer relevance satisfies the claims-response release threshold.",
"target_entity_id": "demo-experiment-02-optimized",
"target_entity_type": "Candidate"
},
"mutable_attributes": {
"status": "APPROVED"
}
},
"depth": 0
},
{
"entity": {
"entity_id": "actor:ai-governance-governance-reasoning-engine",
"entity_type": "Actor",
"lifecycle": "ACTIVE",
"owner": "ai-governance-governance-reasoning-engine",
"ontology_version": "1.1.0",
"created_at": "2026-09-16T11:01:59.421863Z",
"metadata": {
"synchronized_from": "ontology_sync"
},
"immutable_attributes": {
"actor_id": "ai-governance-governance-reasoning-engine",
"actor_type": "user"
},
"mutable_attributes": {}
},
"depth": 1
},
{
"entity": {
"entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"entity_type": "GovernanceDecision",
"lifecycle": "APPROVED",
"owner": "ai-governance-governance-reasoning-engine",
"ontology_version": "1.1.0",
"created_at": "1970-01-01T00:00:00Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:59.341590+00:00",
"projection_hash": "7b820fce75bab3b8f9b343ce913d06abd91c8c3cfa522a0d3be90488f5852dc0",
"projection_source": "governance_decisions",
"projection_version": "1.0.0",
"relationship_set_hash": "e659c6970a277165c12e685a818cf532760a17d0ea762e981fd695a12ffd7232",
"synchronized_from": "governance_decision"
},
"immutable_attributes": {
"created_by": "ai-governance-governance-reasoning-engine",
"decision_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"decision_type": "APPROVE",
"reason": "Candidate passed the release gate with answer relevance at or above 0.90.",
"target_entity_id": "candidate-1",
"target_entity_type": "Candidate"
},
"mutable_attributes": {
"status": "APPROVED"
}
},
"depth": 2
},
{
"entity": {
"entity_id": "candidate-1",
"entity_type": "Candidate",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate A",
"score": 0.91
},
"immutable_attributes": {
"demo_id": "candidate-1"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "owner",
"entity_type": "Actor",
"lifecycle": "active",
"owner": "platform-governance",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Platform Governance"
},
"immutable_attributes": {
"demo_id": "owner"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "policy-release-gate",
"entity_type": "Policy",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Release Gate Policy"
},
"immutable_attributes": {
"demo_id": "policy-release-gate"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "eval-result-approve",
"entity_type": "EvaluationResult",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate A Result",
"score": 0.91
},
"immutable_attributes": {
"demo_id": "eval-result-approve"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "job-eval-approve",
"entity_type": "Job",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate A Evaluation Job",
"status": "SUCCEEDED"
},
"immutable_attributes": {
"demo_id": "job-eval-approve"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "answer-relevance-approve",
"entity_type": "Metric",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Answer Relevance",
"score": 0.91
},
"immutable_attributes": {
"demo_id": "answer-relevance-approve"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"entity_type": "GovernanceDecision",
"lifecycle": "PROPOSED",
"owner": "ai-governance-governance-reasoning-engine",
"ontology_version": "1.1.0",
"created_at": "1970-01-01T00:00:00Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:59.363838+00:00",
"projection_hash": "5b631ece2f5dfa8966d5d1db5fc7e1405421e97867f3a727b33fec05951e07da",
"projection_source": "governance_decisions",
"projection_version": "1.0.0",
"relationship_set_hash": "fea1176417f3f29c37be548f2445a96aa69bac2017f72af6f7046eaf24b9bd3e",
"synchronized_from": "governance_decision"
},
"immutable_attributes": {
"created_by": "ai-governance-governance-reasoning-engine",
"decision_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"decision_type": "INVESTIGATE",
"reason": "Candidate needs review because answer relevance is below 0.90.",
"target_entity_id": "candidate-2",
"target_entity_type": "Candidate"
},
"mutable_attributes": {
"status": "PROPOSED"
}
},
"depth": 2
},
{
"entity": {
"entity_id": "candidate-2",
"entity_type": "Candidate",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate B",
"score": 0.84
},
"immutable_attributes": {
"demo_id": "candidate-2"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "eval-result-review",
"entity_type": "EvaluationResult",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate B Result",
"score": 0.84
},
"immutable_attributes": {
"demo_id": "eval-result-review"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "job-eval-review",
"entity_type": "Job",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate B Evaluation Job",
"status": "REVIEW"
},
"immutable_attributes": {
"demo_id": "job-eval-review"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "answer-relevance-review",
"entity_type": "Metric",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Answer Relevance",
"score": 0.84
},
"immutable_attributes": {
"demo_id": "answer-relevance-review"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"entity_type": "GovernanceDecision",
"lifecycle": "REJECTED",
"owner": "ai-governance-governance-reasoning-engine",
"ontology_version": "1.1.0",
"created_at": "1970-01-01T00:00:00Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:59.388179+00:00",
"projection_hash": "82bd7d85f91a26035b119c30635a4b2a9223cdd74cf95b2cd6f90ee61e0375a7",
"projection_source": "governance_decisions",
"projection_version": "1.0.0",
"relationship_set_hash": "c5746a2cc7ce1d822bf5bdee87c01c1ba5e9eaae8a00e05028d0d576bf01eb27",
"synchronized_from": "governance_decision"
},
"immutable_attributes": {
"created_by": "ai-governance-governance-reasoning-engine",
"decision_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"decision_type": "REJECT",
"reason": "Candidate was rejected because answer relevance is below 0.75.",
"target_entity_id": "candidate-3",
"target_entity_type": "Candidate"
},
"mutable_attributes": {
"status": "REJECTED"
}
},
"depth": 2
},
{
"entity": {
"entity_id": "candidate-3",
"entity_type": "Candidate",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate C",
"score": 0.68
},
"immutable_attributes": {
"demo_id": "candidate-3"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "eval-result-reject",
"entity_type": "EvaluationResult",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate C Result",
"score": 0.68
},
"immutable_attributes": {
"demo_id": "eval-result-reject"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "job-eval-reject",
"entity_type": "Job",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate C Evaluation Job",
"status": "FAILED"
},
"immutable_attributes": {
"demo_id": "job-eval-reject"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "answer-relevance-reject",
"entity_type": "Metric",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Answer Relevance",
"score": 0.68
},
"immutable_attributes": {
"demo_id": "answer-relevance-reject"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"entity_type": "GovernanceDecision",
"lifecycle": "BLOCKED",
"owner": "ai-governance-governance-reasoning-engine",
"ontology_version": "1.1.0",
"created_at": "1970-01-01T00:00:00Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:59.412628+00:00",
"projection_hash": "cf4fba424c04835a7a4221e1a33d07b2017e6d381484569375b81a373ef9bc6f",
"projection_source": "governance_decisions",
"projection_version": "1.0.0",
"relationship_set_hash": "53fcd4ffd21814070cfd881ad8d06ea0ebdec217d658419de75694919dfe4b71",
"synchronized_from": "governance_decision"
},
"immutable_attributes": {
"created_by": "ai-governance-governance-reasoning-engine",
"decision_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"decision_type": "BLOCK",
"reason": "Candidate was blocked because answer relevance is below 0.50.",
"target_entity_id": "candidate-4",
"target_entity_type": "Candidate"
},
"mutable_attributes": {
"status": "BLOCKED"
}
},
"depth": 2
},
{
"entity": {
"entity_id": "candidate-4",
"entity_type": "Candidate",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate D",
"score": 0.43
},
"immutable_attributes": {
"demo_id": "candidate-4"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "eval-result-block",
"entity_type": "EvaluationResult",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate D Result",
"score": 0.43
},
"immutable_attributes": {
"demo_id": "eval-result-block"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "job-eval-block",
"entity_type": "Job",
"lifecycle": "completed",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Candidate D Evaluation Job",
"status": "BLOCKED"
},
"immutable_attributes": {
"demo_id": "job-eval-block"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "answer-relevance-block",
"entity_type": "Metric",
"lifecycle": "active",
"owner": "owner",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"metadata": {
"demo": true,
"label": "Answer Relevance",
"score": 0.43
},
"immutable_attributes": {
"demo_id": "answer-relevance-block"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-02-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-02",
"ontology_version": "1.1.0",
"created_at": "2026-08-11T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.224345+00:00",
"projection_hash": "f34b955c30ec19b759a90e00daf2ea742bc16c98e1cd1e49b2b9717e8b56b40d",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "6c28307a44143a7cf7bc56a2dcd2ae47e062e15df04826067904e2f346da6123",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-02-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-02",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Claims Triage Prompt Benchmark · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 1
},
{
"entity": {
"entity_id": "demo-experiment-02",
"entity_type": "Experiment",
"lifecycle": "COMPLETED",
"owner": "studio-demo",
"ontology_version": "1.1.0",
"created_at": "2026-08-11T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.114981+00:00",
"projection_hash": "f34802cb963e8351d8f6b45b3572543613673ae5635d37036d2dc31d1bdfa875",
"projection_source": "experiment_service",
"projection_version": "1.0.0",
"relationship_set_hash": "ca199428c2efc0ec367289af7181f8bef4d120d8d0876b2aec4d96a5c05a3456",
"synchronized_from": "experiment_service"
},
"immutable_attributes": {
"created_at": "2026-08-11T10:37:59.633004+00:00",
"experiment_id": "demo-experiment-02",
"name": "Claims Triage Prompt Benchmark"
},
"mutable_attributes": {
"description": "Seeded Studio experiment for comparing governed prompts, models, datasets, and evaluation outcomes.",
"owner": "studio-demo",
"status": "COMPLETED"
}
},
"depth": 2
},
{
"entity": {
"entity_id": "actor:studio-demo",
"entity_type": "Actor",
"lifecycle": "ACTIVE",
"owner": "studio-demo",
"ontology_version": "1.1.0",
"created_at": "2026-09-16T11:01:58.121719Z",
"metadata": {
"synchronized_from": "ontology_sync"
},
"immutable_attributes": {
"actor_id": "studio-demo",
"actor_type": "user"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-02-baseline",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-02",
"ontology_version": "1.1.0",
"created_at": "2026-08-11T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.200206+00:00",
"projection_hash": "c4f2da2d0a9eaa8456f11ac5f7e7c43211af5b18f9d327d09a5fbd028625eabd",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "f987e5a7dfc10c279c97b2a92669262842396db70b9dbf77b08cadea2f6e6de6",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-02-baseline",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-02",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "baseline"
},
"model_id": "demo-model-general-v1",
"model_version": "2026.01",
"name": "Claims Triage Prompt Benchmark · Baseline",
"prompt_id": "demo-prompt-support-v1",
"prompt_version": "v1.0",
"temperature": 0.0,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-prompt-support-v2",
"entity_type": "PromptVersion",
"lifecycle": "ACTIVE",
"owner": "studio-demo",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:37:59.657194Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:57.683468+00:00",
"projection_hash": "e0f5a0aa25b8889b30d1e13936af526b18fbb3fdcdf9e86a8beb917d015d5bc4",
"projection_source": "prompt_registry",
"projection_version": "1.0.0",
"provenance": "MANAGED",
"relationship_set_hash": "32d6d1604b159f795d22dc9d9b6864c14d9458f9891401fea379099c9665b430",
"source_reference": null,
"source_system": null,
"synchronized_from": "prompt_registry"
},
"immutable_attributes": {
"content_available": true,
"content_hash": null,
"created_by": "studio-demo",
"name": "Demo Support Assistant",
"prompt_id": "demo-prompt-support-v2",
"template": "Answer using the supplied context and cite evidence.",
"variables": [
"context",
"question"
],
"version": "v1.1"
},
"mutable_attributes": {
"status": "ACTIVE"
}
},
"depth": 2
},
{
"entity": {
"entity_id": "prompt:Demo Support Assistant",
"entity_type": "Prompt",
"lifecycle": "ACTIVE",
"owner": "studio-demo",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:37:59.657194Z",
"metadata": {
"provenance": "MANAGED",
"source_reference": null,
"source_system": null,
"synchronized_from": "prompt_registry"
},
"immutable_attributes": {
"name": "Demo Support Assistant"
},
"mutable_attributes": {
"status": "ACTIVE"
}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-prompt-support-v1",
"entity_type": "PromptVersion",
"lifecycle": "ACTIVE",
"owner": "studio-demo",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:37:59.657194Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:57.598790+00:00",
"projection_hash": "e2491d894840659743c279d548325dcb6204f60912f50a3f06c1e1c053520f3e",
"projection_source": "prompt_registry",
"projection_version": "1.0.0",
"provenance": "MANAGED",
"relationship_set_hash": "fa993bde097ad05b15fbf7cc61768894d31af7b79e16ed5b9c4eec261c6c03ee",
"source_reference": null,
"source_system": null,
"synchronized_from": "prompt_registry"
},
"immutable_attributes": {
"content_available": true,
"content_hash": null,
"created_by": "studio-demo",
"name": "Demo Support Assistant",
"prompt_id": "demo-prompt-support-v1",
"template": "Answer using only the supplied context.",
"variables": [
"context",
"question"
],
"version": "v1.0"
},
"mutable_attributes": {
"status": "ACTIVE"
}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-01-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-01",
"ontology_version": "1.1.0",
"created_at": "2026-08-13T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.176662+00:00",
"projection_hash": "54a274064678f0496904429a3a7d02395b750d757c59756ff2403d19c090b67b",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "f5246816a40fed415f54438c93f4a170f5137d595c6380dd29319ea921f214fe",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-01-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-01",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Customer Support RAG Evaluation · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-03-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-03",
"ontology_version": "1.1.0",
"created_at": "2026-08-09T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.258317+00:00",
"projection_hash": "610e8dad2ca05d13d761f54bb2ba1e231b4fe7e2abefba5763d323dd2c8d9878",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "69bb138de26ab516b35e520ec26273340d325071012cebe60a1ea397c6a4bb0f",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-03-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-03",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Invoice Extraction Model Bakeoff · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-04-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-04",
"ontology_version": "1.1.0",
"created_at": "2026-08-07T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.294408+00:00",
"projection_hash": "2c2c8774f15fb6236e6b3bd4a22c2b4c1fa344bc9bd9385038c7a47e438d6a39",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "8d6c829ee74eb9e4a4b061f4ce6475b3443439577a7cec8d6a1d3d1b31f3dbb9",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-04-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-04",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Policy Assistant Groundedness Study · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-05-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-05",
"ontology_version": "1.1.0",
"created_at": "2026-08-05T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.335181+00:00",
"projection_hash": "3aa2e197bc7b6f9e755bca0827237b3c72b87bc69dc9710ea4149148ee2a7ac7",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "2d96750a071d0c81eb072bef3f270d85503932dcea50b6f17515cfcec41c6458",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-05-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-05",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Security Alert Classification · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-06-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-06",
"ontology_version": "1.1.0",
"created_at": "2026-08-03T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.378568+00:00",
"projection_hash": "44123406077e3c54e53f5b0f1038c3c07895e05665d54a9de76ba72f33175c19",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "3c0cb85713b2b66d1a6072e32486e7fb1216217ebe27f29b8925d725d5add7d4",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-06-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-06",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Knowledge Base Answer Quality · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-07-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-07",
"ontology_version": "1.1.0",
"created_at": "2026-08-01T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.423605+00:00",
"projection_hash": "45f61306ee782ff09d4645239972543cb60db38122d8c04a122a27c56dd2ec2f",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "5e856889dcf18b868eb1c18d58cf5ae0c39ecd875400b6a3ccb5809a0b02a4cb",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-07-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-07",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Onboarding Copilot Evaluation · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-08-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-08",
"ontology_version": "1.1.0",
"created_at": "2026-07-30T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.456795+00:00",
"projection_hash": "45fe8604bc29c0d4d52894eaf87819fed84cf5ca549cb076d8208c20daf93c6f",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "f2282cd9dae1a80815f3d264fbece471dd05f9ec968e50b26cc66bea11541f44",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-08-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-08",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Contract Review Candidate Comparison · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-09-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-09",
"ontology_version": "1.1.0",
"created_at": "2026-07-28T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.490431+00:00",
"projection_hash": "e568b4a16d1c7125a63d8f358492b38a6a913ef60aac16a0cde875d87390b259",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "a55ff0d8d03a5e14337f18b192fc3a23abfd3fdfa43f908cfbcfc5ae51d6e03a",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-09-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-09",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Incident Summary Reliability · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-10-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-10",
"ontology_version": "1.1.0",
"created_at": "2026-07-26T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.529970+00:00",
"projection_hash": "1256376f9f4108b68423ffdba05018c39c4188247711a8bccf3c57e0a830349f",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "416ec124933923ae34ca06e7985027b97b378a9b234a3dfe731f5dc88aa2f60c",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-10-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-10",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Sales Enablement Response Study · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-11-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-11",
"ontology_version": "1.1.0",
"created_at": "2026-07-24T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.573323+00:00",
"projection_hash": "246dd5bfe76241aa0605e8eefef48ac087f53808fd671a26b9a9fda826b2371d",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "f5c85eecc8d6e4efd43e2215bb24f80acd019e2a0a5d51e5f60693f31387775b",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-11-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-11",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Healthcare FAQ Hallucination Audit · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-12-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-12",
"ontology_version": "1.1.0",
"created_at": "2026-07-22T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.626182+00:00",
"projection_hash": "d1dfdc3eff5854ceb0c45d917bbdee7430717f779b10fbd0fefa01e00f1d4ad5",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "32fabc95bd7241d6d3599ddd76c5879c2b04f1cf4aa3b8df1e3dcfd8fe9274b5",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-12-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-12",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Finance Assistant Latency Review · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-13-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-13",
"ontology_version": "1.1.0",
"created_at": "2026-07-20T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.669661+00:00",
"projection_hash": "1ad166142e8ed7988beea188462d7086755864b0afc3907d0f75b62d69587d46",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "0c59996af348fb3283f84de1711553627a5d8afd934f6653cffbfd079c42b986",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-13-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-13",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Developer Copilot Cost Benchmark · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-14-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-14",
"ontology_version": "1.1.0",
"created_at": "2026-07-18T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.709660+00:00",
"projection_hash": "4c1c985c09e55b4d62508ccf2032ee97eeafee1df23be364d4663b8c4a40711c",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "84b0958427c11ab8350b87cd629bc63ab2f01472600e1bb4003c5c9abf1f8327",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-14-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-14",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Multilingual Support Quality · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-experiment-15-optimized",
"entity_type": "Candidate",
"lifecycle": "CREATED",
"owner": "demo-experiment-15",
"ontology_version": "1.1.0",
"created_at": "2026-07-16T10:37:59.633004Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:58.757275+00:00",
"projection_hash": "7716e684345de197c33cf659354fe9f81e91f378aa50d592b43cfc4e89b681c3",
"projection_source": "experiment_candidate_service",
"projection_version": "1.0.0",
"relationship_set_hash": "549346baa1273a7d200c22518eb24c055c83b7233f7861ef1695c5bbc492dbc3",
"synchronized_from": "experiment_candidate_service"
},
"immutable_attributes": {
"candidate_id": "demo-experiment-15-optimized",
"dataset_id": "demo-dataset-evaluation",
"dataset_version": "v1.0",
"evaluation_provider": "mock",
"experiment_id": "demo-experiment-15",
"max_tokens": 1024,
"metadata": {
"seeded": true,
"variant": "optimized"
},
"model_id": "demo-model-general-v2",
"model_version": "2026.02",
"name": "Document Routing Configuration Test · Optimized",
"prompt_id": "demo-prompt-support-v2",
"prompt_version": "v1.1",
"temperature": 0.2,
"top_p": 1.0
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-01",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.384142Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-01",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1001"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-02",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.473433Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-02",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1002"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-03",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.508153Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-03",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1003"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-04",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.540913Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-04",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1004"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-05",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.576555Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-05",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1005"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-06",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.608678Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-06",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1006"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-07",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.644668Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-07",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1007"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-08",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.684580Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-08",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1008"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-09",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.718366Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-09",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1009"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-10",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.757175Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-10",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1010"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-11",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.792333Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-11",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1011"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-12",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.826738Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-12",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1012"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-13",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.859458Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-13",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1013"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-14",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.893516Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-14",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1014"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-15",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.925123Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-15",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1015"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-16",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.956626Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-16",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1016"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-17",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.989548Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-17",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1017"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-18",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.027959Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-18",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1018"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-19",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.069276Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-19",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1019"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-20",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.104128Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-20",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1020"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-21",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.136862Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-21",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1021"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-22",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.171002Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-22",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1022"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-23",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.203723Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-23",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1023"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-24",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.236169Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-24",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1024"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-25",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.270614Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-25",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1025"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-26",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.304287Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-26",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1026"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-source-execution-27",
"entity_type": "WorkflowExecution",
"lifecycle": "COMPLETED",
"owner": "demo-customer-support-workflow",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.337479Z",
"metadata": {
"synchronized_from": "replay_service"
},
"immutable_attributes": {
"events": [
{
"sequence": 1,
"type": "WORKFLOW_COMPLETED"
}
],
"execution_id": "demo-source-execution-27",
"execution_status": "COMPLETED",
"final_state": {
"resolution": "Seeded historical resolution."
},
"input": {
"ticket_id": "SUP-1027"
},
"workflow_id": "demo-customer-support-workflow",
"workflow_name": "Customer support resolution",
"workflow_version": "2026.03"
},
"mutable_attributes": {}
},
"depth": 3
},
{
"entity": {
"entity_id": "demo-model-general-v2",
"entity_type": "ModelVersion",
"lifecycle": "ACTIVE",
"owner": "studio-demo",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:37:59.657194Z",
"metadata": {
"last_synchronized_at": "2026-09-16T11:01:57.798770+00:00",
"projection_hash": "03404f98e382a7ee81169b6c9e00c8c5c821639d0585ad6ebfc8e6ebc40c8806",
"projection_source": "model_registry",
"projection_version": "1.0.0",
"provenance": "MANAGED",
"relationship_set_hash": "9b4005fc5ac703f7d99c8c8f7cfe79cf2af759e6837a29f5e3947ce303110897",
"source_reference": null,
"source_system": null,
"synchronized_from": "model_registry"
},
"immutable_attributes": {
"context_window": 8192,
"cost": {
"input_per_1k_tokens": 0.001
},
"creator": "studio-demo",
"latency": 0.2,
"model_id": "demo-model-general-v2",
"model_name": "demo-general",
"parameters": {
"temperature": 0.0
},
"provider": "mock",
"version": "2026.02"
},
"mutable_attributes": {
"status": "ACTIVE"
}
},
"depth": 2
},
{
"entity": {
"entity_id": "model:mock:demo-general",
"entity_type": "Model",
"lifecycle": "ACTIVE",
"owner": "studio-demo",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:37:59.657194Z",
"metadata": {
"provenance": "MANAGED",
"source_reference": null,
"source_system": null,
"synchronized_from": "model_registry"
},
"immutable_attributes": {
"model_name": "demo-general",
"provider": "mock"
},
"mutable_attributes": {
"status": "ACTIVE"
}
},
"depth": 3
}
],
"edges": [
{
"relationship": {
"relationship_id": "demo-rel-decision-approved-decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"relationship_type": "APPROVED_BY",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "owner",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-blocked-decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"relationship_type": "BLOCKED_BY",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-created-decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "owner",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-created-decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "owner",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-created-decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "owner",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-created-decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "owner",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-rejected-decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"relationship_type": "REJECTED_BY",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "owner",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-target-decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"relationship_type": "DECIDES_ON",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "candidate-1",
"target_entity_type": "Candidate",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-target-decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"relationship_type": "DECIDES_ON",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "candidate-2",
"target_entity_type": "Candidate",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-target-decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"relationship_type": "DECIDES_ON",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "candidate-3",
"target_entity_type": "Candidate",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "demo-rel-decision-target-decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"relationship_type": "DECIDES_ON",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "candidate-4",
"target_entity_type": "Candidate",
"ontology_version": "1.1.0",
"created_at": "2026-07-01T00:00:00Z",
"created_by": "demo-seed",
"metadata": {
"demo": true
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-004051baddf3b61865d5ba52d3b48e8f",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-11-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.855108Z",
"created_by": "demo-experiment-11",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-039a6b3fb69d2ac720f92e12d57f52eb",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "answer-relevance-approve",
"target_entity_type": "Metric",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.467231Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-039dc4873802498c67007a2089e0bff3",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-22",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.172677Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-0483d1b0bf421823cc5c71236928fbf6",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-09",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.721368Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-06a9a8a1f450686f519d421922ab1bb8",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-26",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.306628Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-15a7c93c7f262b8156d39476eba871b5",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-08",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.686576Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-190ba826a8bb3e67bfd841b4565db3af",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "eval-result-review",
"target_entity_type": "EvaluationResult",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.513018Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-1962207f5c1681f82f6dcb4f86fb0ef2",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-14",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.895272Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-1ba26e97dc47a38cc15c75bd2edb1109",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-07",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.647042Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-1cc257e7efad98d7bfb5becd284143cd",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "answer-relevance-block",
"target_entity_type": "Metric",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.680701Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-1e0f9553f5536f631d7a96fae9bdc106",
"relationship_type": "PARTICIPATES_IN",
"source_entity_id": "demo-experiment-02-baseline",
"source_entity_type": "Candidate",
"target_entity_id": "demo-experiment-02",
"target_entity_type": "Experiment",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.305825Z",
"created_by": "demo-experiment-02",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-21ce7bca9f2c17a604ce5709fba55ca5",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.471799Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-271b375cf03ec15dd269cadb0646dfc6",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-05-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.531758Z",
"created_by": "demo-experiment-05",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-2963cad8b39f77c1076da0580b995f9c",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-10-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.807009Z",
"created_by": "demo-experiment-10",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-2b452300dd8fd52f73dd5be33e4312e1",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-01-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.277845Z",
"created_by": "demo-experiment-01",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-3105e29e7effeb2b240bee1dc827c154",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-04",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.542696Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-39e5ed5ee55e4c79af0db35e8a835cb0",
"relationship_type": "HAS_CANDIDATE",
"source_entity_id": "demo-experiment-02",
"source_entity_type": "Experiment",
"target_entity_id": "demo-experiment-02-optimized",
"target_entity_type": "Candidate",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.331179Z",
"created_by": "demo-experiment-02",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-3ae69fb0b4ca4e3b0932695fd19fd73a",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "actor:ai-governance-governance-reasoning-engine",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.575929Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-4644b87a10274cf31ace35a37e9bee62",
"relationship_type": "SUPERSEDES",
"source_entity_id": "demo-prompt-support-v2",
"source_entity_type": "PromptVersion",
"target_entity_id": "demo-prompt-support-v1",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.748844Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-4921ca4ed531f9042341e7953dff2166",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-24",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.238113Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-4c04fe438ddfe10998e3e1db35dd7893",
"relationship_type": "CREATED_BY",
"source_entity_id": "demo-prompt-support-v2",
"source_entity_type": "PromptVersion",
"target_entity_id": "actor:studio-demo",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.720920Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-50337cae87363ed45ad80c5ef4e1538c",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-18",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.030149Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-52759e9c10323fc0d9f68a960fd9722b",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "actor:ai-governance-governance-reasoning-engine",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.662448Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-563a613071bd99d84c171dde587913c0",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-17",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.991291Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-59d36b7e91c720ec075f553936cca08c",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-09-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.759579Z",
"created_by": "demo-experiment-09",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-5b989d2a09d10016bde4faa4e528af99",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "eval-result-approve",
"target_entity_type": "EvaluationResult",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.442747Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-5c5a30c747343a5407456d6de4bafb3b",
"relationship_type": "HAS_VERSION",
"source_entity_id": "prompt:Demo Support Assistant",
"source_entity_type": "Prompt",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.705931Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-5c9049ee386218b1a68a70d7ca410ddb",
"relationship_type": "VERSION_OF",
"source_entity_id": "demo-prompt-support-v2",
"source_entity_type": "PromptVersion",
"target_entity_id": "prompt:Demo Support Assistant",
"target_entity_type": "Prompt",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.712882Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-6bea7b4a4e4b21418c1e404363ca39fb",
"relationship_type": "OWNED_BY",
"source_entity_id": "demo-experiment-02",
"source_entity_type": "Experiment",
"target_entity_id": "actor:studio-demo",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.144029Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-7027fdbe27ca26bc11f6975149955b30",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.526417Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-70e9b76043124fad43b1bed579659b68",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-06-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.590853Z",
"created_by": "demo-experiment-06",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-744d8320e8199a2fa1ca247576b946cb",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-07-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.646769Z",
"created_by": "demo-experiment-07",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-74b7b07d6cc73ac4cd872b56fb35eb68",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "eval-result-reject",
"target_entity_type": "EvaluationResult",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.585968Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-7523e9e26ad1c98e8c8c6d29ebaab917",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-15-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:02.045240Z",
"created_by": "demo-experiment-15",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-766f6f6ccdce72f2c0f4ddb2b7fc6b84",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "actor:ai-governance-governance-reasoning-engine",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.374577Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-7d6a23652da46fcc43b68fdef6b47a58",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "job-eval-reject",
"target_entity_type": "Job",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.590509Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-7d860ea40e3aaffed242830adf795adc",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-03",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.509993Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-81af395744378e16b0855d0253ce6184",
"relationship_type": "HAS_CANDIDATE",
"source_entity_id": "demo-experiment-02",
"source_entity_type": "Experiment",
"target_entity_id": "demo-experiment-02-baseline",
"target_entity_type": "Candidate",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.301186Z",
"created_by": "demo-experiment-02",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-834b96bd7f3ee3a5d1763b75cbda1413",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "job-eval-approve",
"target_entity_type": "Job",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.448410Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-850689f0033a70dd70e8d74479f2b6cc",
"relationship_type": "OWNED_BY",
"source_entity_id": "demo-prompt-support-v2",
"source_entity_type": "PromptVersion",
"target_entity_id": "actor:studio-demo",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.726322Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-87248fcc16ec505a259189d3d0339699",
"relationship_type": "DECIDES_ON",
"source_entity_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "demo-experiment-02-optimized",
"target_entity_type": "Candidate",
"ontology_version": "1.1.0",
"created_at": "2026-09-16T10:49:53.242257Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-89a4918d5a3af0de24c6078b981b24fa",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "job-eval-review",
"target_entity_type": "Job",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.517059Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-8ae1363831041d062a98f2a308697f0f",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-05",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.578555Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-90047a31fc61743d788803f0bbbb8128",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-04-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.471339Z",
"created_by": "demo-experiment-04",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-90668c41970b81bd3eb7271830cda040",
"relationship_type": "CREATED_BY",
"source_entity_id": "demo-model-general-v2",
"source_entity_type": "ModelVersion",
"target_entity_id": "actor:studio-demo",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.835618Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-90cb2491fa56c9b2bf8ca130e378457c",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-16",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.958700Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-97221bc8e0a9e568abf242daca189c58",
"relationship_type": "GOVERNED_BY",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.581505Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-9ae03421c13009457782bcd162ef181d",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-02-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.341245Z",
"created_by": "demo-experiment-02",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-9f2d1855ca253f3f193e33ca117bc0af",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-19",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.071202Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-a300c8546c560d8e132e7bd7cd5f22d6",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:demo-experiment-02-optimized:APPROVE:ebb5765f8f880524",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "actor:ai-governance-governance-reasoning-engine",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-09-16T10:49:53.127102Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-a677f178e2eccb89f796324073959c68",
"relationship_type": "GOVERNED_BY",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.667759Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-aa9de4f352410a0885c24c3d99a4d25d",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.687227Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ab2e2ad42dbde4bdf6341038764a49ca",
"relationship_type": "GOVERNED_BY",
"source_entity_id": "decision:Candidate:candidate-1:APPROVE:6b5c8da0340292f7",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.411181Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ad3c37d89cd93103858cc2fdcf724d94",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-13-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.950694Z",
"created_by": "demo-experiment-13",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-b356ef9a02e2fb66c99d8e186f57382e",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-08-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.697971Z",
"created_by": "demo-experiment-08",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-b775a4a65ab8c2e1fcbf9d8efa6239cb",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-03-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.405830Z",
"created_by": "demo-experiment-03",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-baba6318f134ca56face659522d37fd6",
"relationship_type": "VERSION_OF",
"source_entity_id": "demo-model-general-v2",
"source_entity_type": "ModelVersion",
"target_entity_id": "model:mock:demo-general",
"target_entity_type": "Model",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.828528Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-bc353ef61b478331ef3e1eb713eb648d",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-25",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.273104Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-c1ae2d4bcc771def9118d3d2f2d9dae9",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-01",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.416036Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-c24586f837eae90546f331f8cc231029",
"relationship_type": "GOVERNED_BY",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.508419Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ca0bf902e0e913cfc3ec16ec39ac1caf",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-20",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.105892Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ca805a88193a586afa5137f5ae1a5d9f",
"relationship_type": "PARTICIPATES_IN",
"source_entity_id": "demo-experiment-02-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-experiment-02",
"target_entity_type": "Experiment",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.337358Z",
"created_by": "demo-experiment-02",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-cb356d72d03aa93bd4f491e91e3ac332",
"relationship_type": "CREATED_BY",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "actor:ai-governance-governance-reasoning-engine",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.503350Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-d164087730a257b793845696bc00e61e",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-21",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.138805Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-d1ce65ceefcd305ac709f72597f36f7a",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "answer-relevance-reject",
"target_entity_type": "Metric",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.594972Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-d36b851968b7b01c352b90c7d7be9631",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "job-eval-block",
"target_entity_type": "Job",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.676420Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-d3e93105953fd881cd23981a71b06af7",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-02",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.475835Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-d42ea0a47668e49df7f95475a19c47f3",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-10",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.759445Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-d9bb984d96cda0f17ade2883881e54ab",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-27",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.339775Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-df1f8fca90f407cbf7102579bab96abf",
"relationship_type": "HAS_VERSION",
"source_entity_id": "model:mock:demo-general",
"source_entity_type": "Model",
"target_entity_id": "demo-model-general-v2",
"target_entity_type": "ModelVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:00.823149Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-e35ee2a122391eccbe529990a8ffe8ba",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-12",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.828578Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ead4c221fe93213fac0c99421835d4b1",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-3:REJECT:50c99fc024032947",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "policy-release-gate",
"target_entity_type": "Policy",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.599310Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ec6dd25c2f31e74db4d2de64d47f3f84",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-11",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.795622Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ecfa3297e1a94844bee85581bff1a0dc",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-13",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.861404Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ed4d8ff2145d19b2aae8bcf193eda015",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-2:INVESTIGATE:7aad61e62b84edde",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "answer-relevance-review",
"target_entity_type": "Metric",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.521356Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ed52e37d22a134434fb63eb834502399",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-15",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.926916Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-ed5f3fe52df9a12b63e1fb253e467d22",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-06",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:03.610382Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-eddd3bcdc137e0010d3a5ebb6ca001db",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-02-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-model-general-v2",
"target_entity_type": "ModelVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.345618Z",
"created_by": "demo-experiment-02",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-f2a3d6ac8dfae33a7986c866e7812e30",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-14-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.997997Z",
"created_by": "demo-experiment-14",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-f39c822d425d70127b210d3b48946dd4",
"relationship_type": "GENERATED_FROM",
"source_entity_id": "decision:Candidate:candidate-4:BLOCK:2e7ae4565765a084",
"source_entity_type": "GovernanceDecision",
"target_entity_id": "eval-result-block",
"target_entity_type": "EvaluationResult",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:29.672345Z",
"created_by": "ai-governance-governance-reasoning-engine",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-f3feb70467cbc728c890b537c1421d2f",
"relationship_type": "USES",
"source_entity_id": "demo-experiment-12-optimized",
"source_entity_type": "Candidate",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.902867Z",
"created_by": "demo-experiment-12",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-f8c22d96def103272988c073472a6375",
"relationship_type": "USES",
"source_entity_id": "demo-source-execution-23",
"source_entity_type": "WorkflowExecution",
"target_entity_id": "demo-prompt-support-v2",
"target_entity_type": "PromptVersion",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:04.205541Z",
"created_by": "replay_service",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
},
{
"relationship": {
"relationship_id": "ontology-rel-f954fa78c524e5cba8a1217eb288ed79",
"relationship_type": "CREATED_BY",
"source_entity_id": "demo-experiment-02",
"source_entity_type": "Experiment",
"target_entity_id": "actor:studio-demo",
"target_entity_type": "Actor",
"ontology_version": "1.1.0",
"created_at": "2026-08-15T10:38:01.137632Z",
"created_by": "studio-demo",
"metadata": {
"synchronized_from": "ontology_sync"
}
}
}
]
}
}
Expected persisted path APPROVED
- 1Claims response PromptVersion v1.0 — seeded baseline
- 2Claims response PromptVersion v1.1 — candidate input
- 3Claims triage Candidate — demo-experiment-02-optimized
- 4EvaluationResult and Metric evidence
- 5Claims Triage Prompt Release policy version
- 6GovernanceDecision — persisted with request and correlation IDs
What this guide deliberately does not do.
It does not mutate an old prompt, fabricate evaluation evidence, or turn the policy engine into the application runtime. Your system owns prompt authoring and evaluation execution; BHANUJ Platform owns the versioned policy, durable decision, and its evidence context.
